Explore DWARF mini Smart Telescope
The DWARF mini packs an automated telescope, mount, dual cameras and image processing into an 840 g, travel-friendly body. Use the DWARFLAB app to automatically locate, autofocus, track and capture targets from the Moon to the Milky Way without a laptop. Its built-in battery and storage keep short sessions fully self-contained.

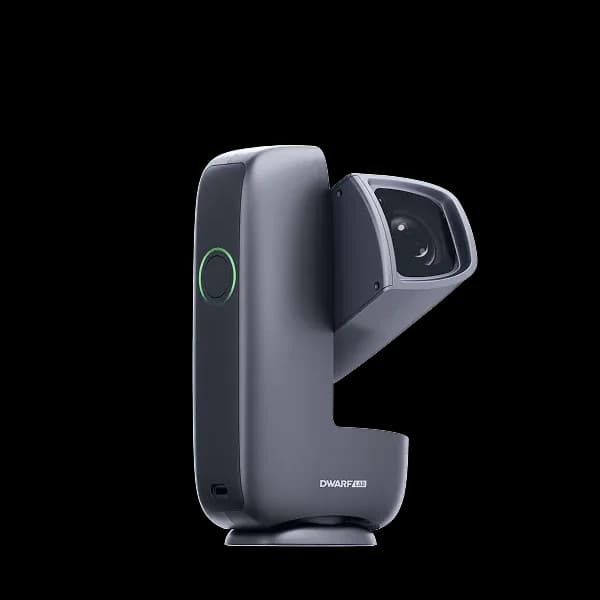

Ultra-portable smart telescope weighing only 840 g
30 mm apochromatic telephoto system with Sony IMX662 sensor
Automatic GoTo, autofocus and intelligent celestial tracking
Up to 90-second exposures when used in equatorial mode
Built-in Astro, Dark and Duo-Band filters for versatile astrophotography
A 30 mm telephoto with a Sony IMX662 sensor works alongside a wide-angle camera for easier target acquisition and composition. Use the wide field to frame the Milky Way or star trails, then switch to the telephoto for detailed views of nebulae and the Moon.
Automatic GoTo and intelligent celestial tracking reduce setup time and keep targets centred during sessions. In equatorial mode the mount supports exposures up to 90 seconds, letting you integrate longer without star trails when aligned correctly.
The telephoto path includes Astro, Dark and a Duo-Band filter that targets H-alpha and OIII emission lines. The Duo-Band filter helps improve contrast for emission nebulae, especially useful from light-polluted locations.
The DWARFLAB app handles capture, stacking and on-device post-processing so you can complete imaging sessions from a phone without a laptop. RAW files can also be exported for further processing in desktop applications such as Siril or PixInsight.
At about 184 mm tall and 840 g, the DWARF mini fits a travel kit. It includes a built-in 7000 mAh battery, internal 64 GB storage and USB-C charging, making it suited for short backyard sessions or dark-sky trips with minimal additional kit.
Maximum exposure is 90 seconds when used in equatorial (EQ) mode.
The telephoto uses a Sony IMX662 on a 150 mm optical path (30 mm aperture) with an equivalent focal length of approximately 1016 mm. The wide-angle camera is a 3.4 mm / 6.7 mm optic with an OmniVision OS02K10 sensor and a 45 mm equivalent view.
Yes. The DWARFLAB app performs capture, stacking and image processing on a phone. RAW data can also be exported for desktop processing in software such as Siril or PixInsight.
The unit contains a built-in 7000 mAh battery and 64 GB of internal storage, and it supports USB charging.
The telephoto optical path includes Astro, Dark and Duo-Band filters. The Duo-Band targets H-alpha and OIII emission regions to help with nebula contrast.
Package contents list 1 x DWARF mini Smart Telescope, 1 x ND Filter, 1 x USB-C Cable and 1 x Cleaning Cloth.
| Product Type | Smart Telescope |
| Positioning | Advanced / Pro-Level Smart Telescope |
| Telephoto Aperture | 30 mm |
| Telephoto Focal Length | 150 mm |
| Telephoto Sensor | Sony IMX662, 1/2.8" CMOS |
| Wide-Angle Aperture | 3.4 mm |
| Wide-Angle Focal Length | 6.7 mm |
| Wide-Angle Sensor | OmniVision OS02K10, 1/2.8" CMOS |
| Equivalent Focal Length | 1016 mm telephoto / 45 mm wide-angle |
| Maximum Resolution | 1920 x 1080 |
| Telephoto Filters | Astro, Dark, Duo-Band |
| Wide-Angle Filter | Astro |
| Maximum Exposure | 90 seconds in EQ mode |
| Rotation Range | 225° lens / 360° base |
| Storage | 64 GB |
| Battery | Built-in 7000 mAh |
| External Power | USB charging supported |
| NPU Performance | 1 TOPS |
| Weight | 840 g |
| Dimensions | 100.38 x 183.61 x 60.70 mm |
| Connectivity | NFC one-touch connection |
| Imaging Modes | Photo, Video, Astronomy, Burst, Time-Lapse |
| Astrophotography Features | GoTo, automatic tracking, post-processing, scheduled imaging, mosaics |
