Explore Artemis-M Pro

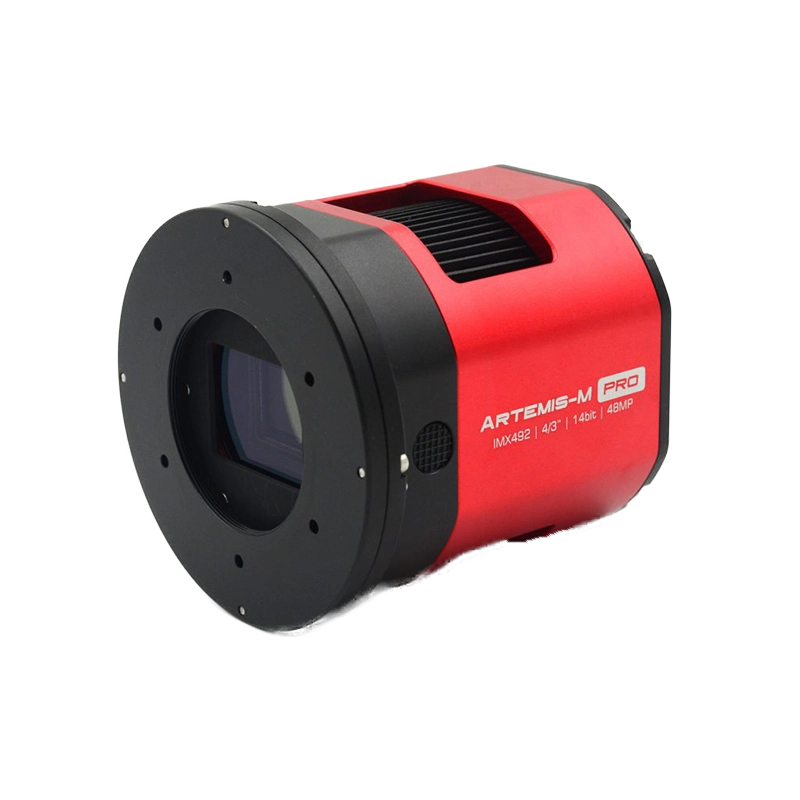

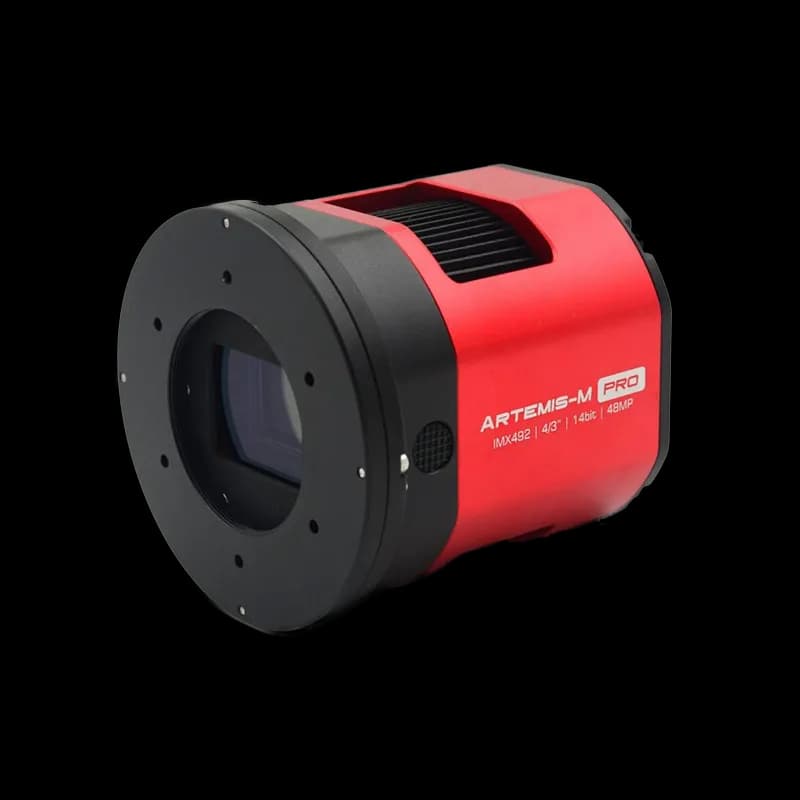

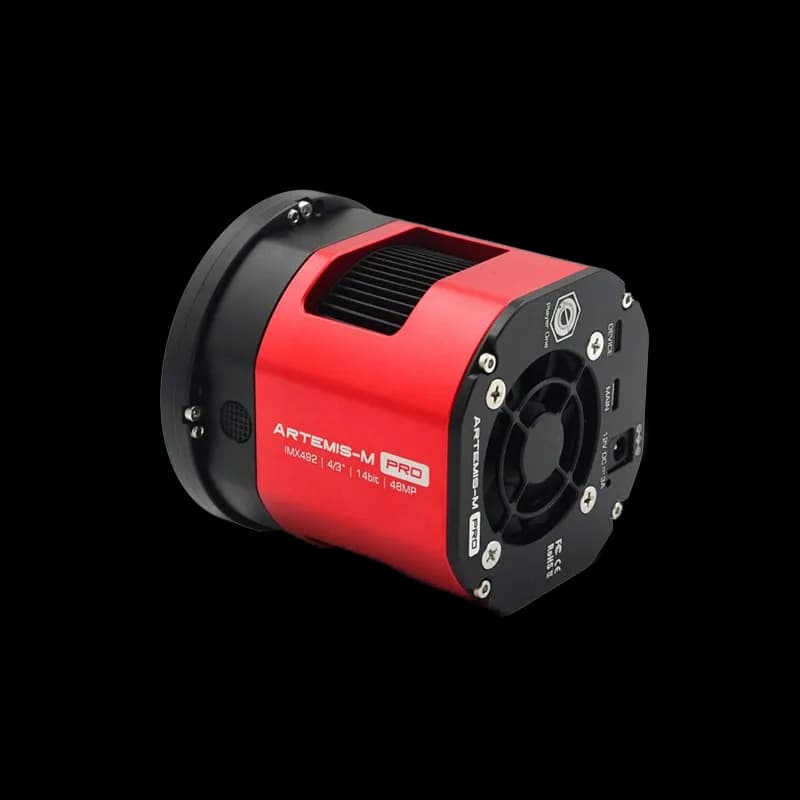

A 47 megapixel, 4/3" monochrome sensor combined with deep cooling for long-exposure deep sky imaging. The Sony IMX492 sensor and Player One two-stage TEC cooler let you capture fine detail with lower noise and extended exposure capability, while the camera body includes a rear tilt plate for field flattening and filter setups.
Sensor: Sony IMX492 mono
Format: 19.2 x 13.0 mm (4/3″)
Max Resolution: 8288 x 5648 (47 MP)
Pixel Size: 2.315 µm

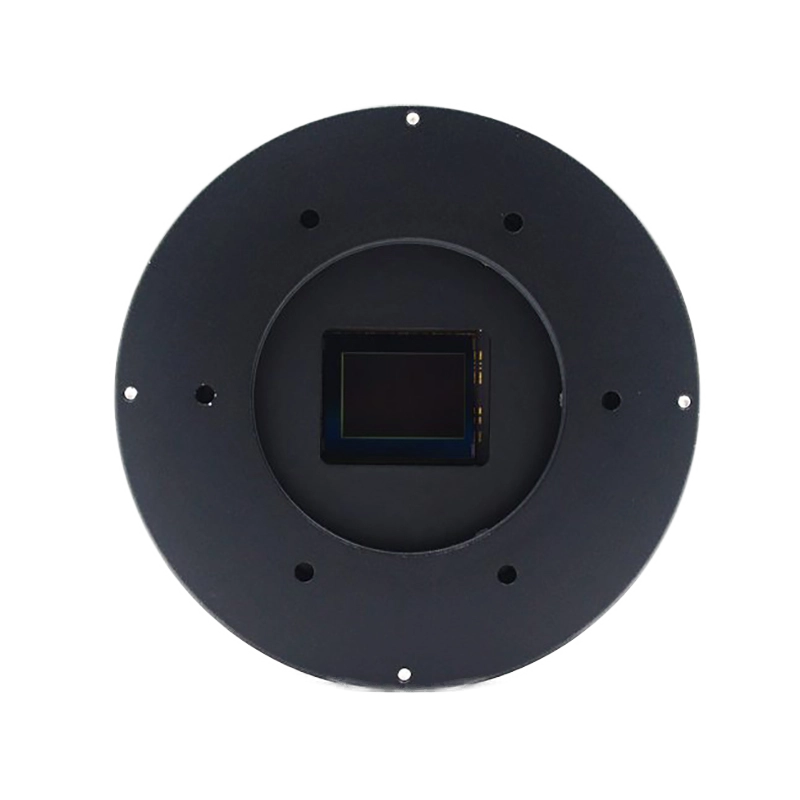

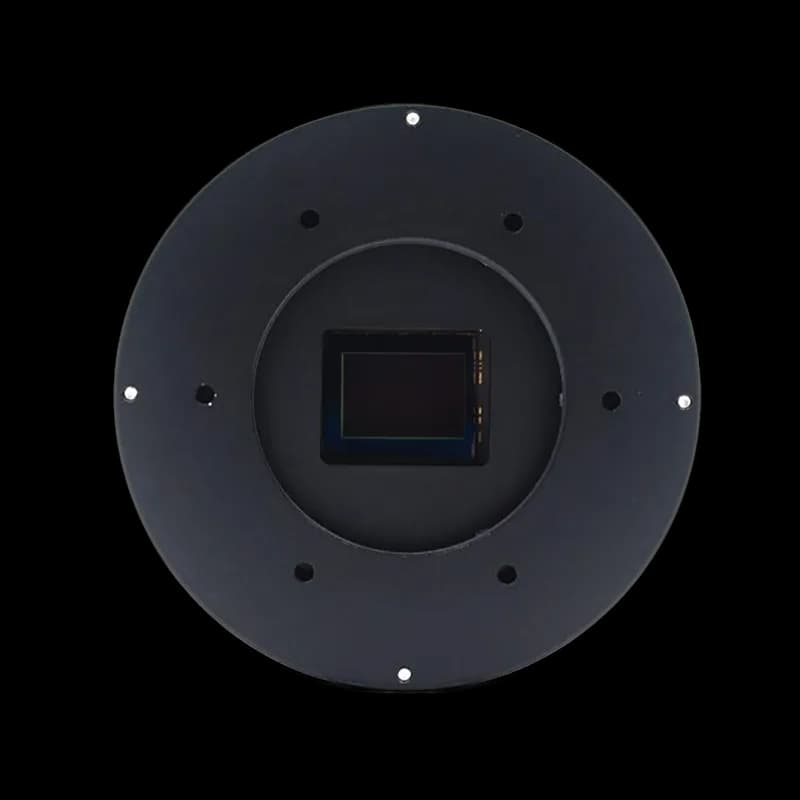

The IMX492 sensor delivers 47 MP at 8288 x 5648 with 2.315 μm pixels on a 19.2 x 13.0 mm chip. That pixel density gives high sampling for small-scale structure in nebulae and galaxies when paired with appropriate optics.
Hardware BIN1 gives full 47 MP at native 12-bit depth and about 8 FPS (RAW8). BIN2 combines pixels to produce 11.7 MP at extended 14-bit depth and higher full-well, reaching up to 33 FPS (RAW8) for faster framing or brighter targets.
A two-stage thermoelectric cooler can reach about 40 °C below ambient, helping reduce thermal noise for long exposures. Cooling features include adjustable fan and anti-dew power, useful for extended imaging sessions in varying conditions.
The camera offers large full-well capacity differences: roughly 18.6k e⁻ in BIN1 and 65.8k e⁻ in BIN2, enabling higher dynamic range in binned mode. Readout noise can fall to about 1.2 e⁻ in BIN2 HCG mode, improving faint-signal detection.

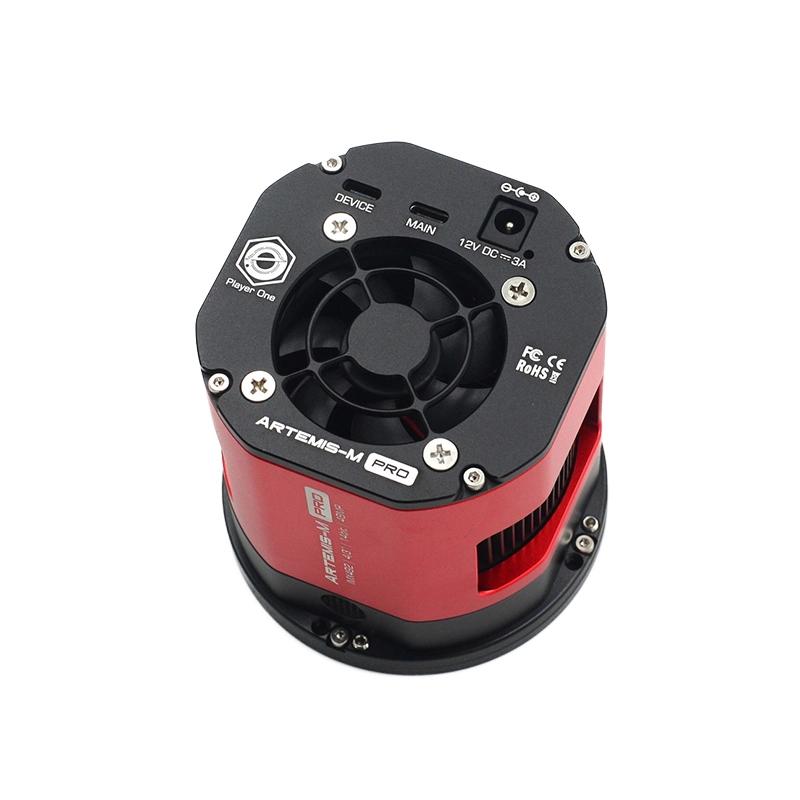

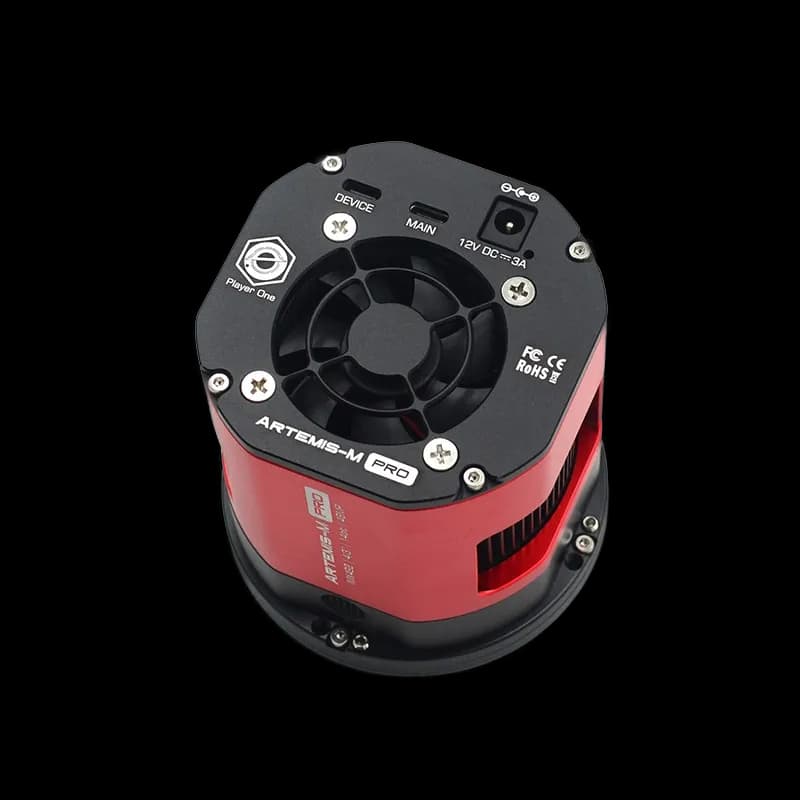

A 512 MB DDR3 buffer stabilizes transfers and helps avoid frame drops even on USB 2.0. The camera provides USB Type-C data ports (USB 3.0 / USB 2.0) and multiple adapters including M48 and 1.25" options, plus a front tilt plate for alignment with filters and optics.
| ADC | 12-bit (BIN1), 14-bit (BIN2) |
| Adapter | M48x0.75, 2″, 1.25″ |
| Back Focal Length | 17.5 mm, 12.5 mm (without tilt plate) |
| Chip Size | 19.2 mm x 13.0 mm |
| Cooler Power Consumption | 12 V - 3 A Max |
| Cooling System | High quality 2-stage TEC cooling Component |
| Data Port | USB 3.0 / USB 2.0 (Type-C) |
| Delta T | ≈40 ℃ below ambient |
| Diagonal | 23.2 mm |
| Diameter | 90 mm |
| Exposure Range | 32 µs-2000 s |
| Frame Rate | 8 FPS @ RAW8 (BIN1), 33 FPS @ RAW8 (BIN2) |
| Full Well | 18.6 k e⁻ (BIN1), 65.8 k e⁻ (BIN2) |
| Max Resolution | 8288x5648 (BIN1) / 4144x2824 (BIN2) |
| Pixel Size | 2.315 µm |
| Protective Window | D46 x 2 mm High Quality AR Plus Multi-Layer Coating |
| QE Peak | ≈90% |
| Readout Noise | 7.7-1.46 e⁻ (BIN1), 7.8-1.2 e⁻ (BIN2) |
| Resolution and FPS | Performance via USB 3.0 Connection Resolution RAW8 BIN1 RAW8 BIN2 8288x5648 8 FPS 4 FPS |
| Sensor | Sony IMX492 4/3″ CMOS (mono) |
| Shutter | Rolling shutter |
| Total Pixels | 47 Mega Pixels |
| Weight | 650 g |
| Working Temperature & Humidity | -10 ℃-60 ℃ / 0%-80% |
