Apollo 428M MAX Pro

1 / 2

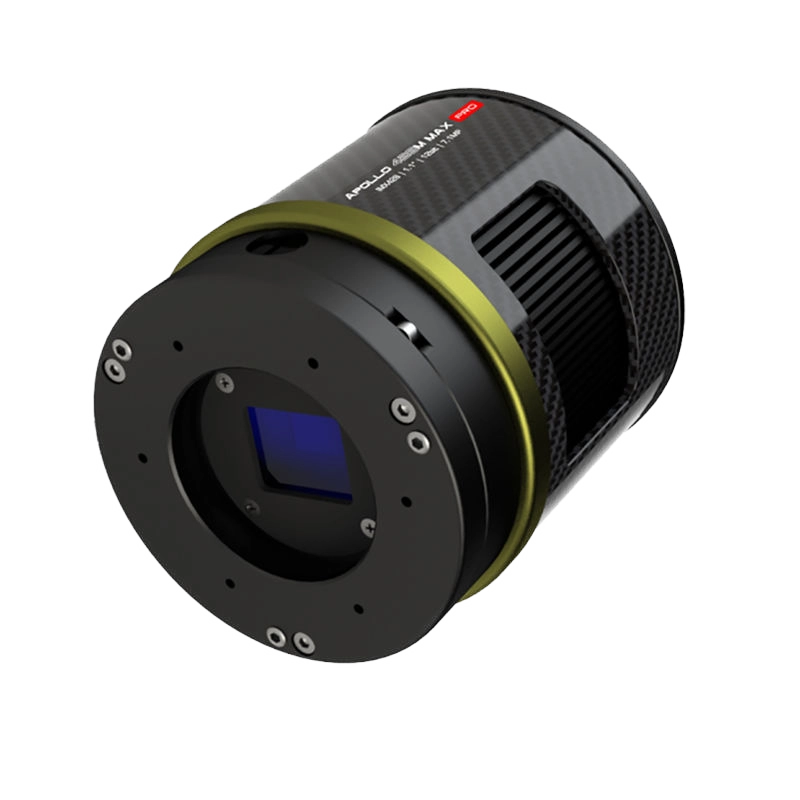

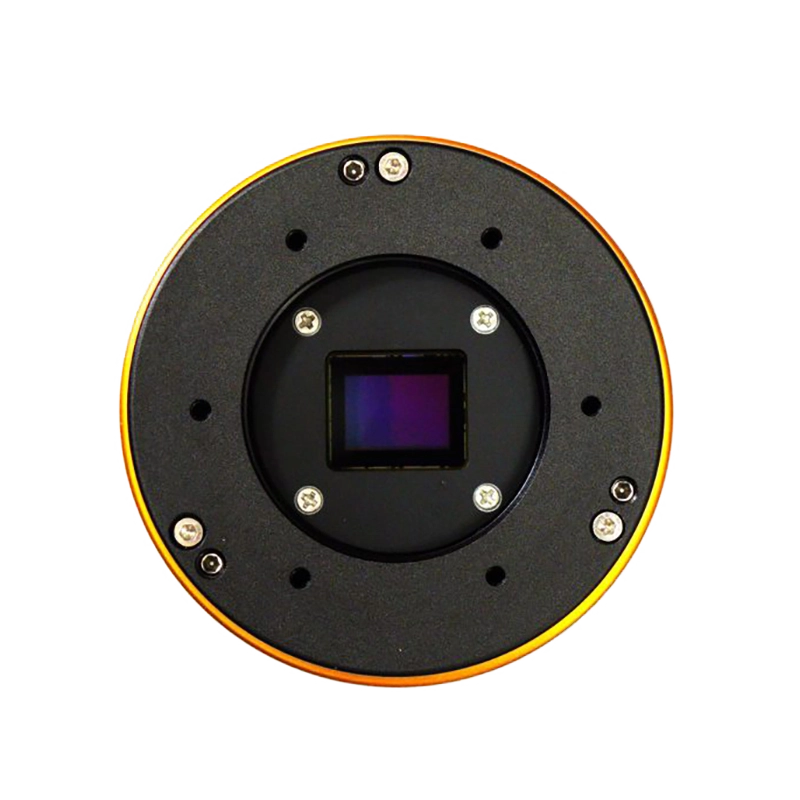

Apollo 428M MAX Pro

byPlayer One

Player One

Manufacturer detailsOpen imaging planner

Key features

  • Sensor: Sony IMX428 mono
  • Format: 14.5 x 9.9 mm (1.1")
  • Max Resolution: 3216 x 2208 (7.1 MP)
  • Pixel Size: 4.5 µm (BIN2 = 9 µm)

Sale pricing

R 19 950.00R 22 950.00Sale

Ends 31 December

Then R 22 950.00

Available to order

Estimated 14 days lead time

Need advice about this product?

Email us
FeaturesFeaturesMediaMediaSpecsSpecifications
Buy / options ↑Buying options ↑

Explore Apollo 428M MAX Pro

High-resolution cooled mono imaging

This cooled monochrome camera pairs a Sony IMX428 1.1" sensor with compact, lightweight hardware for versatile planetary, lunar and solar work. It combines 7.1 megapixels, hardware binning options and two-stage TEC cooling with an anti-dew heater to help you capture stable, low-noise frames across short and long exposures.

High-resolution cooled mono imaging

At a glance

  • 01

    Sensor: Sony IMX428 mono

  • 02

    Format: 14.5 x 9.9 mm (1.1")

  • 03

    Max Resolution: 3216 x 2208 (7.1 MP)

  • 04

    Pixel Size: 4.5 µm (BIN2 = 9 µm)

Sensor, resolution and pixel scale

The camera uses a Sony IMX428 monochrome sensor in a 1.1" format, delivering 3216 × 2208 (7.1 MP) at 4.5 µm pixels. In BIN2 mode the effective pixel size doubles to 9 µm, increasing full well and changing sampling, useful when you need more signal per binned pixel or want to match larger focal ratios.

Flexible high-speed and binning modes

Hardware and software BIN2 modes boost well depth and throughput. Full-resolution BIN1 reaches 51 FPS RAW8 or 27 FPS RAW16; hardware BIN2 reaches up to 135 FPS Mono8 or 109 FPS Mono16. Choose BIN2 for higher full well (reported around 100 ke⁻) or unbinned for maximum resolution.

Low read noise and HCG option

Read noise varies with gain: the range is about 5.5–1.4 electrons across gain settings. HCG activates at gain 70, with about 2.4 electrons at the transition; read noise reaches about 1.4 electrons at gain 450. This gives flexibility when imaging bright targets at high frame rates or faint targets requiring low noise.

Two-stage cooling and thermal performance

A two-stage TEC cooler targets a delta-T around 35–40 °C below ambient in long-exposure mode, or about 30 °C in video mode, helping lower dark current for long exposures. The camera also includes a built-in anti-dew heater to guard the protective window, and a 512 MB DDR3 buffer to smooth data streaming during sustained captures.

A closer look

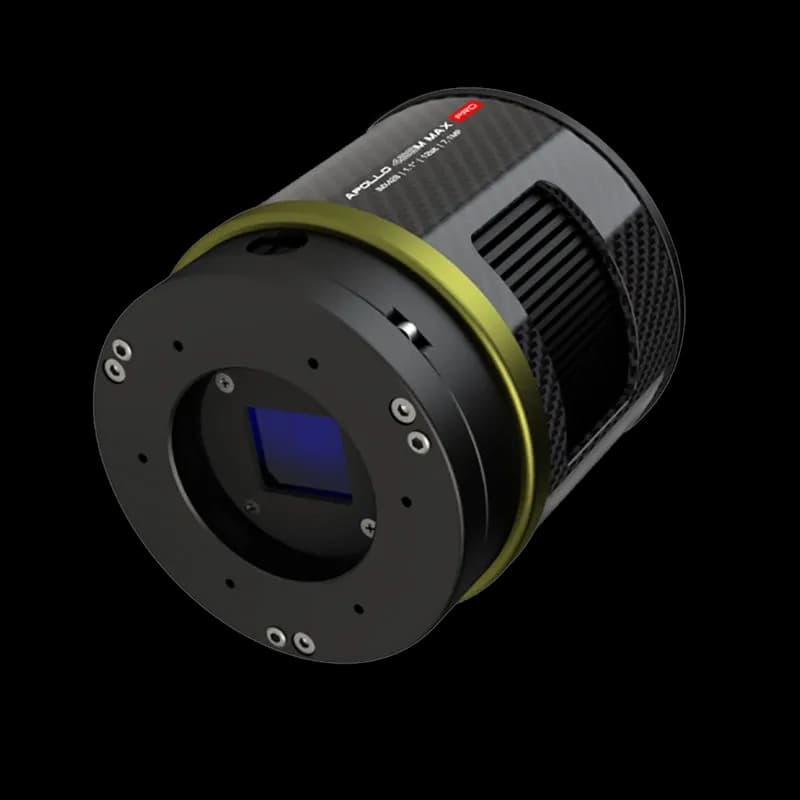

Apollo 428M MAX Pro

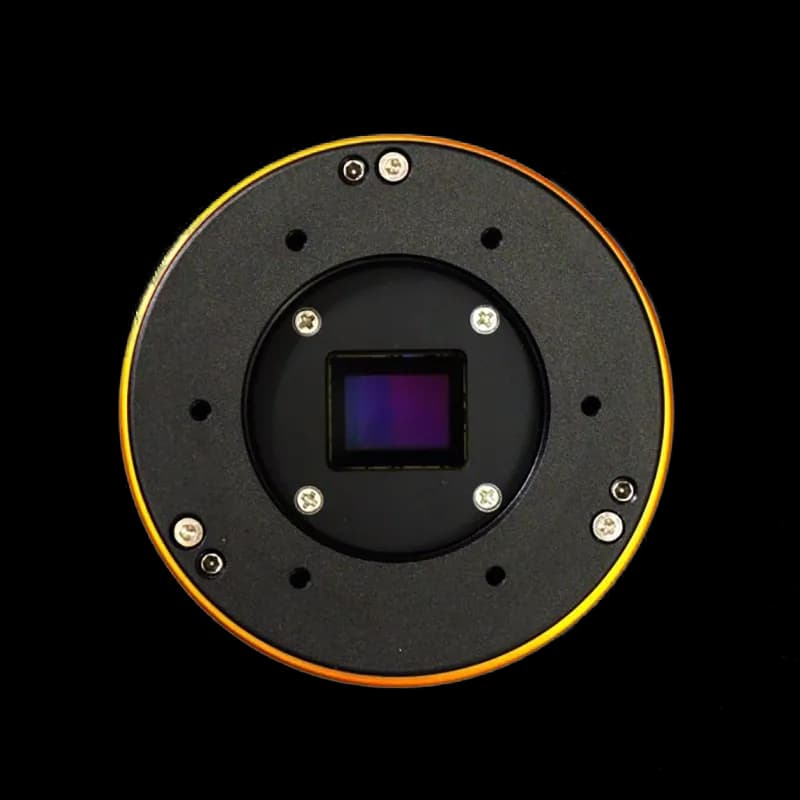

Apollo 428M MAX Pro
Specifications
ADC12 bit
Adapter1.25″ / M42x0.75
Back Focal Length17.5 mm
Chip Size14.5 mm x 9.9 mm
Cooler Power Consumption12 V - 3 A Max
Cooling SystemHigh quality 2-stage TEC cooling Component
Data PortUSB 3.0 / USB 2.0 (Type-C)
Delta T35–40 °C below ambient in long-exposure mode; about 30 °C in video mode (manufacturer test conditions: 30 °C ambient, fan 100%, dew heater 1%)
Diagonal17.5 mm
Diameter78 mm
Exposure Range32 µs-2000 s
Frame Rate51 FPS (10-bit RAW8)
Full Well25.3 k e⁻ (BIN1), ~100 k e⁻ (BIN2)
Max Resolution3216x2208
Pixel Size4.5 µm (BIN2 = 9 µm)
Protective WindowD32 x 2 mm High Quality AR Plus Multi-Layer Coating
QE Peak≈79%
Readout Noise5.5–1.4 e⁻ across gain settings; HCG activates at gain 70 (~2.4 e⁻); ~1.4 e⁻ at gain 450
Resolution and FPSPerformance via USB 3.0 Connection Resolution RAW8 RAW16 (12-bit ADC) 3216x2208 51 FPS 27 FPS
SensorSony IMX428 1.1″ CMOS (mono)
ShutterGlobal shutter
Total Pixels7.1 Mega Pixels
Weight420 g
Working Temperature & Humidity-10 °C-60 °C / 0%-80%
Package contents
  • Apollo 428M MAX PRO camera + metal cover
  • M48F-M42M extender - 17.5 mm
  • M42F-M42M extender - 20 mm
  • M48M-M42F adapter - 0 mm
  • T-mount + 1.25″ cover
  • Air blower
  • Type-C to Type-A USB cable (2 m, USB 3.0)
  • Type-C to Type-B USB cable (0.5 m, USB 2.0)
  • Type-C to Type-C USB cable (0.5 m, USB 2.0)
  • M2 hex wrench, screwdriver + screws
  • Rear 4P tilter
  • Cable tie
  • Camera bag
