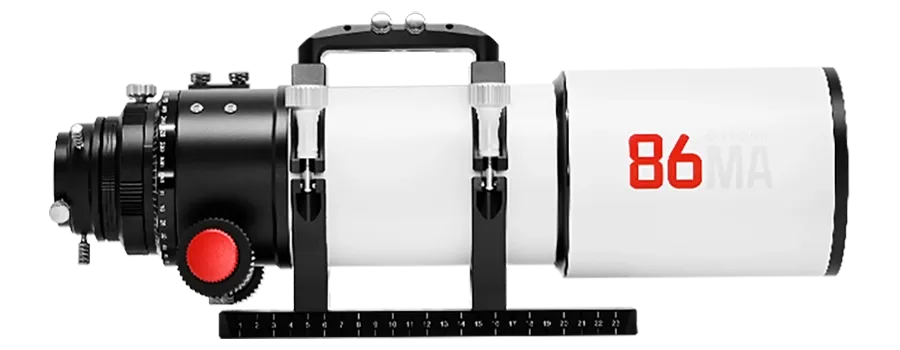

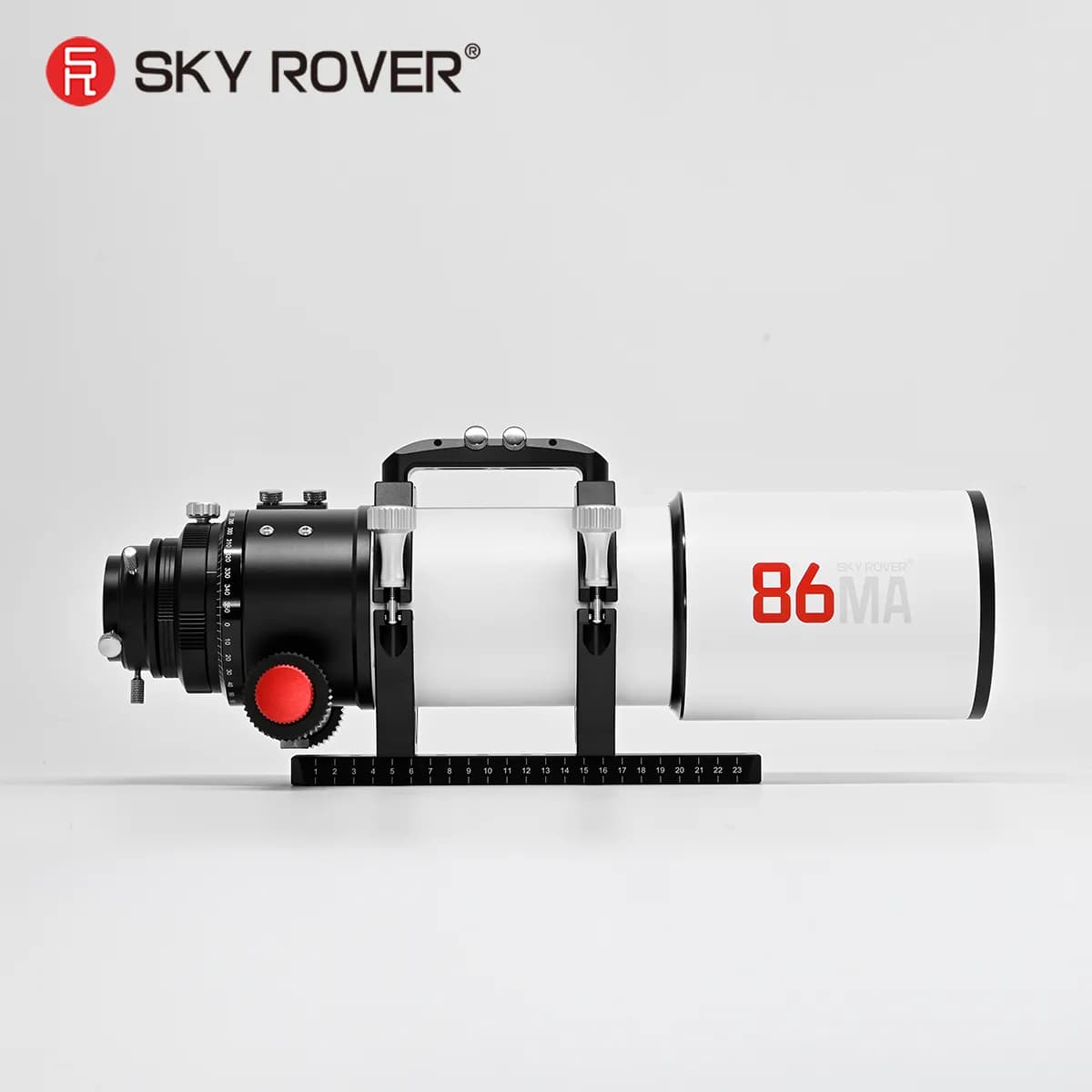

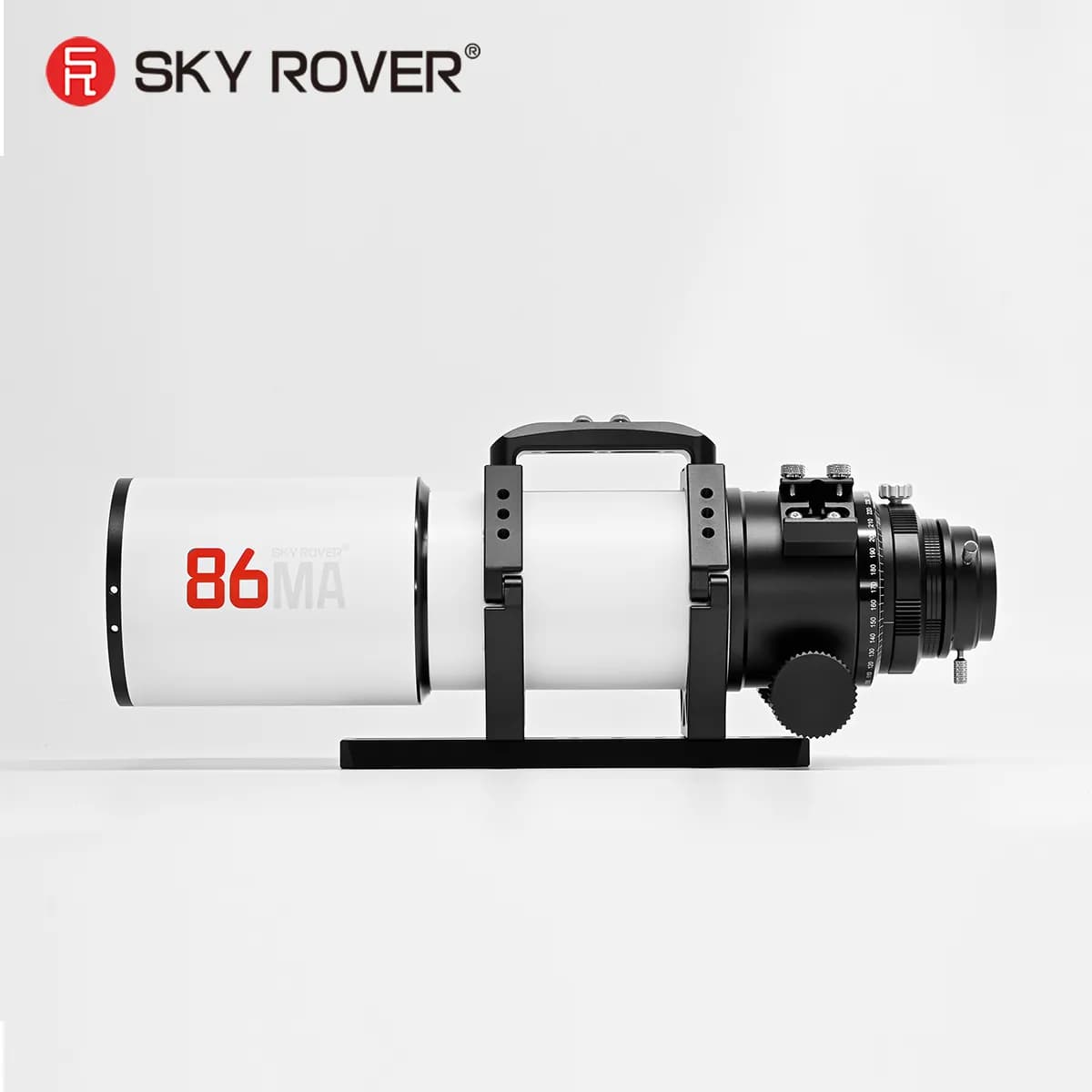

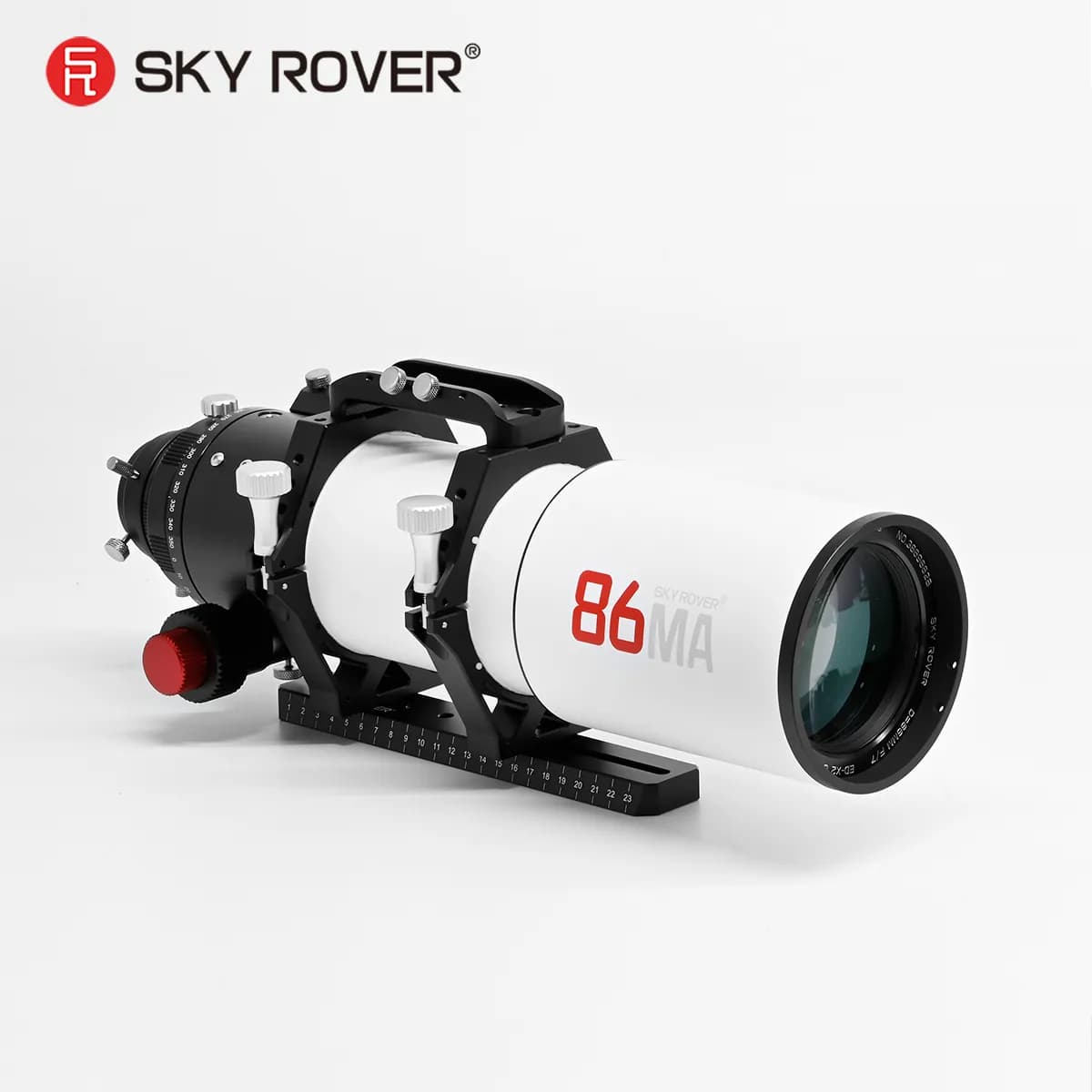

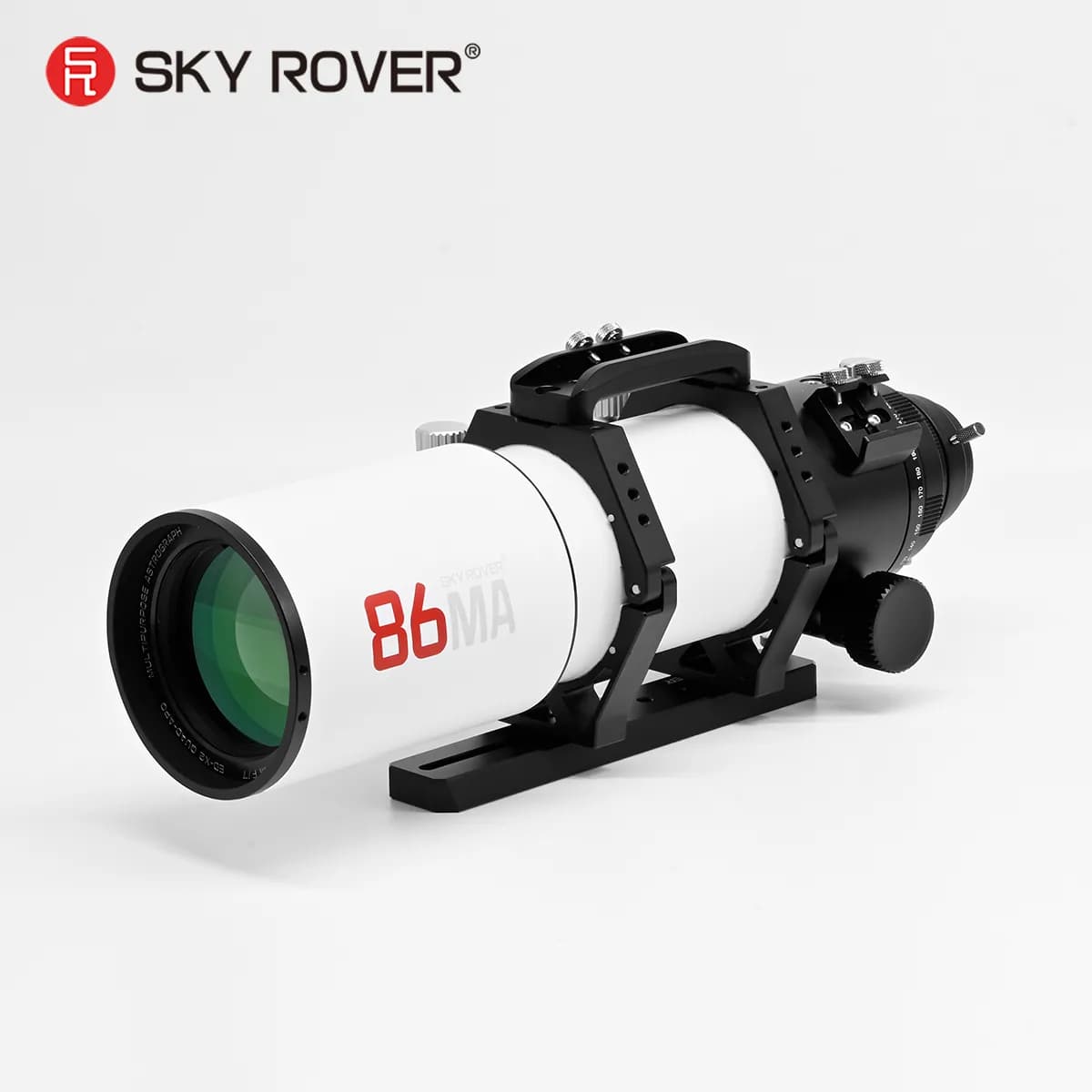

The 86MA is a multipurpose 86 mm f/7 astrograph built for imaging and flexible visual use. Its integrated triplet and crescent-shaped flattener produce a native flat field that supports full-frame prime-focus sensors, while a forgiving focal ratio and optional reducer simplify focusing and composition for astrophotographers and visual observers alike.
86 mm native flat-field astrograph
Full-frame imaging at prime focus
Dual ED glass objective design
3.2-inch dual-speed R&P focuser
Visual and imaging friendly design

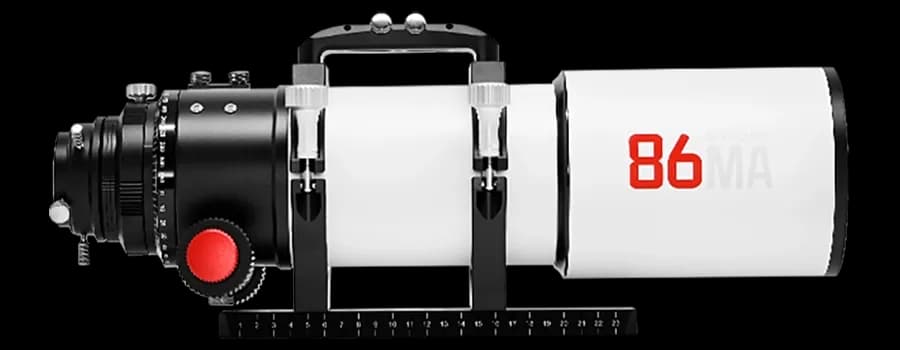

A unified optical layout combines a triplet objective with a crescent-shaped field flattener to deliver a native flat field across a 44 mm image circle. That means full-frame cameras can reach the edges of the frame at prime focus without separate flatteners in many setups.

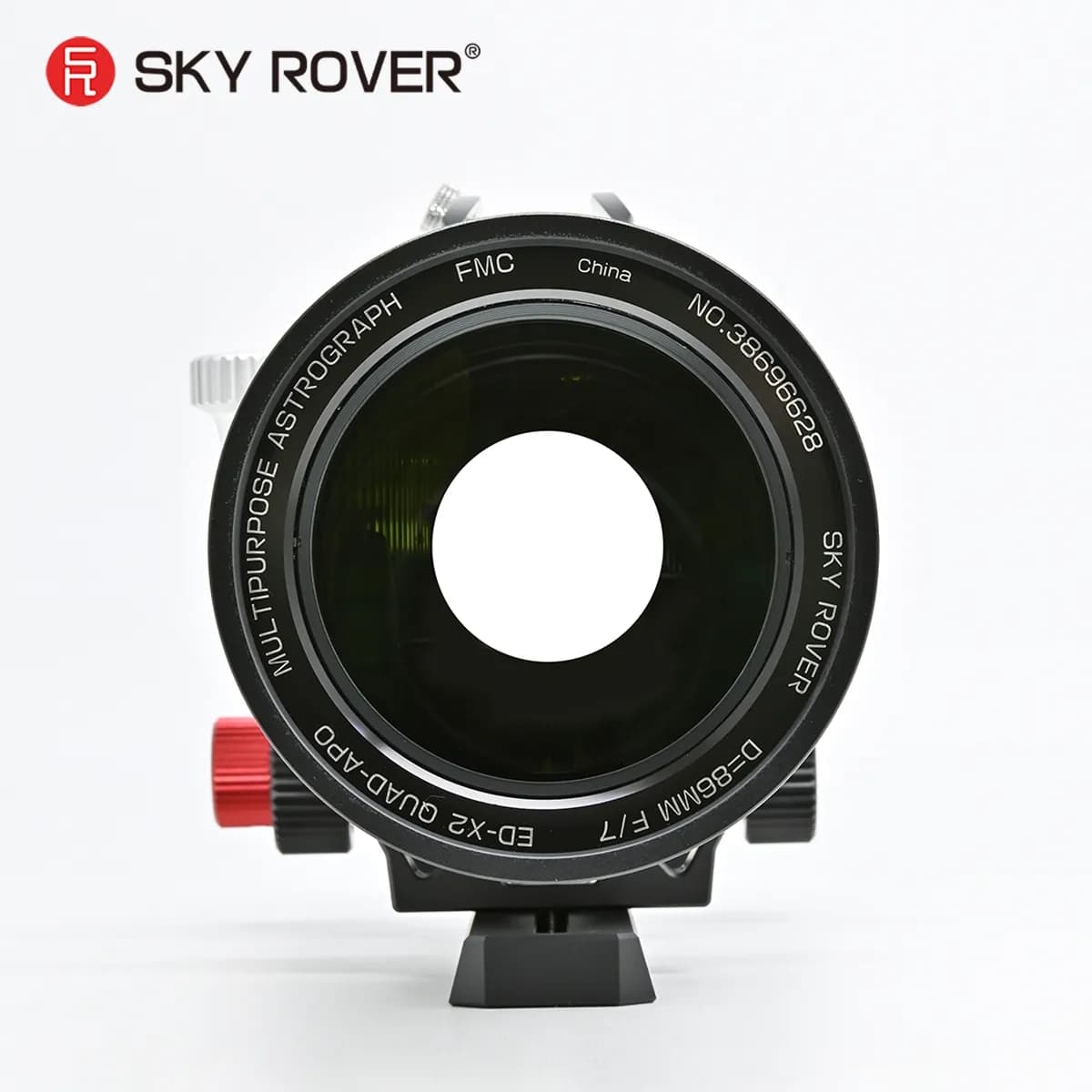

The front lens group uses two ED glass elements to improve chromatic control and deliver finer star images and better color correction than a simple achromat. This helps keep stars tight across the field and reduces the need for aggressive post-processing to remove color fringing.
With an 86 mm aperture and 602 mm focal length at f/7, the 86MA strikes a balance between wide-field framing and resolution. The f/7 ratio makes focusing less demanding than faster astrographs while still giving good plate scale for detail on small telescopes and larger sensors.

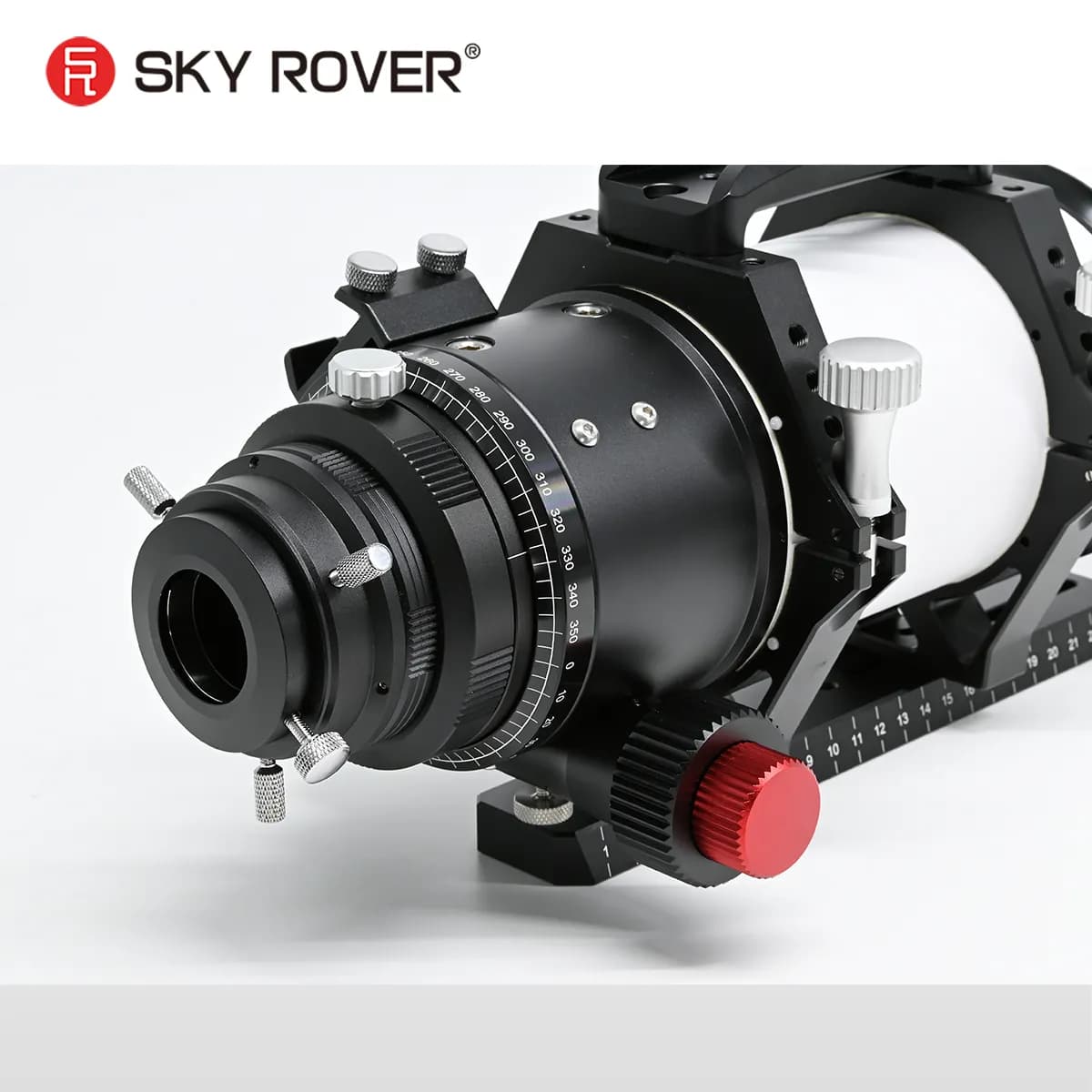

A 3.2-inch dual-speed rack-and-pinion focuser with 85 mm travel provides precise focusing and fine adjustments, while the rear flange offers M63, M54, M48 and 2-inch interfaces for cameras, reducers and visual accessories. Tube rings, a dovetail plate and carry bag are included for transport and mounting.
The 86MA provides a 44 mm image circle, supporting full-frame sensors at prime focus according to the product specifications.
The telescope has a focal length of 602 mm and a focal ratio of f/7.

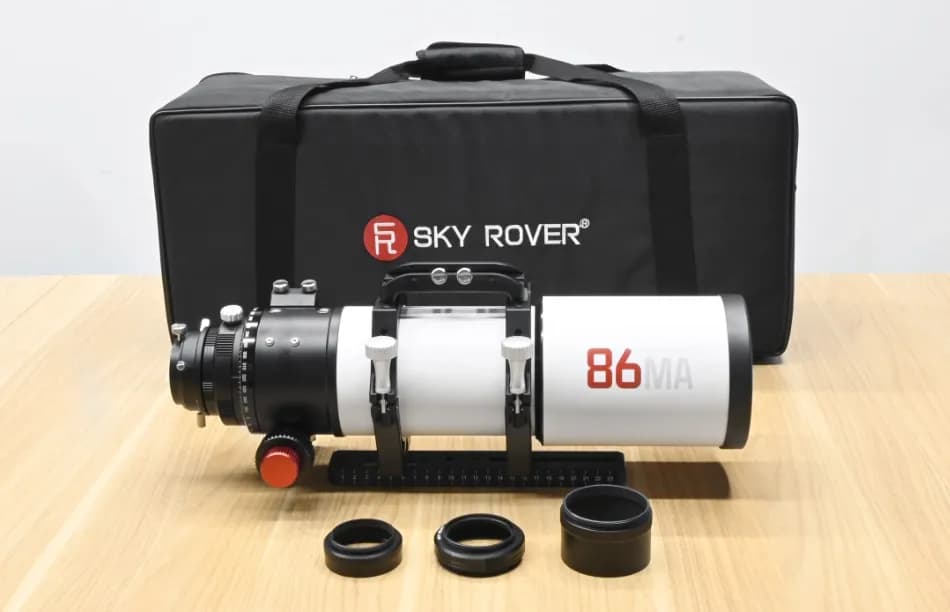

The package includes the OTA, tube rings, a Vixen-style dovetail plate, handle, finder base, M54 and M48 adapters, and a soft carry bag.
Yes. The 86MA is described as compatible with standard visual accessories such as diagonals and eyepieces, and it can support binoviewers when used with an extender.

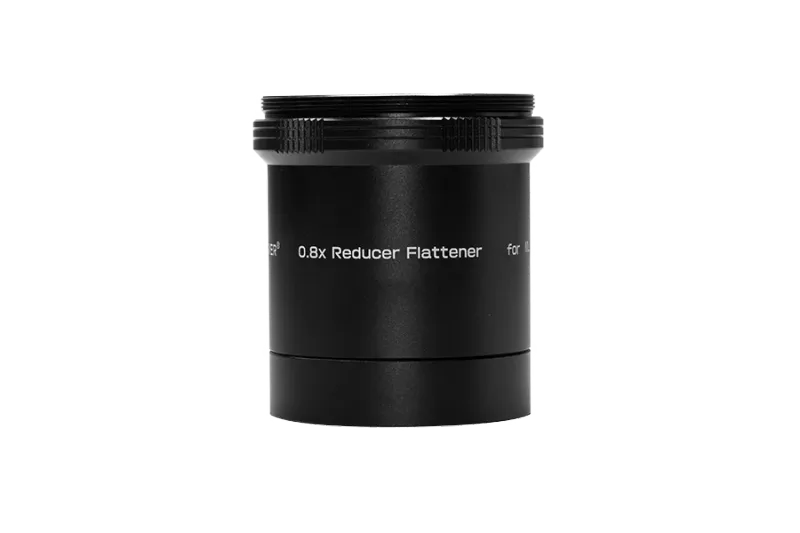

An optional 0.8x reducer is available for the 86MA.
Tube length is 460 mm retracted and 560 mm extended, the dew shield outer diameter is 121 mm, the OTA weight is 3.5 kg, and gross weight with tube ring and dovetail is 5 kg.
Rear interfaces include M63 x 1, M54 x 0.75, M48 x 0.75 and a 2-inch connection.
| Aperture | 86 mm |
| Focal Length | 602 mm |
| Focal Ratio | f/7 |
| Optical Design | Air-spaced quadruplet, native flat field, with two ED glass lenses |
| Image Circle | 44 mm, full frame |
| Tube Length | 460 mm retracted, 560 mm extended |
| Dew Shield Outer Diameter | 121 mm |
| OTA Weight | 3.5 kg |
| Gross Weight (with tube ring & dovetail) | 5 kg |
| Focuser | 3.2-inch dual-speed rack-and-pinion focuser |
| Focus Travel | 85 mm |
| Rear Interfaces | M63 x 1 / M54 x 0.75 / M48 x 0.75 / 2-inch |
| Optional Reducer | 0.8x reducer available |
