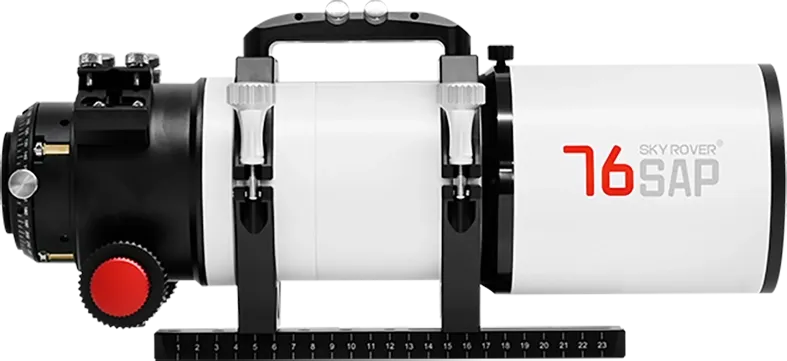

The Sky Rover 76SAP is a compact f/4.8 Petzval astrograph built for wide-field, full-frame astrophotography. Its 76 mm aperture and 365 mm focal length keep the tube short and portable while delivering a naturally flat 45 mm image circle suited to large sensors. The design focuses on a simple, rigid imaging train and easy in-field alignment.
Fast 76mm f/4.8 Petzval optical system
Native flat field for full-frame imaging
3.3" dual-speed rack-and-pinion focuser
Built-in tilt and rotation adjustment
Rigid CNC tube with rings, handle, and Vixen plate

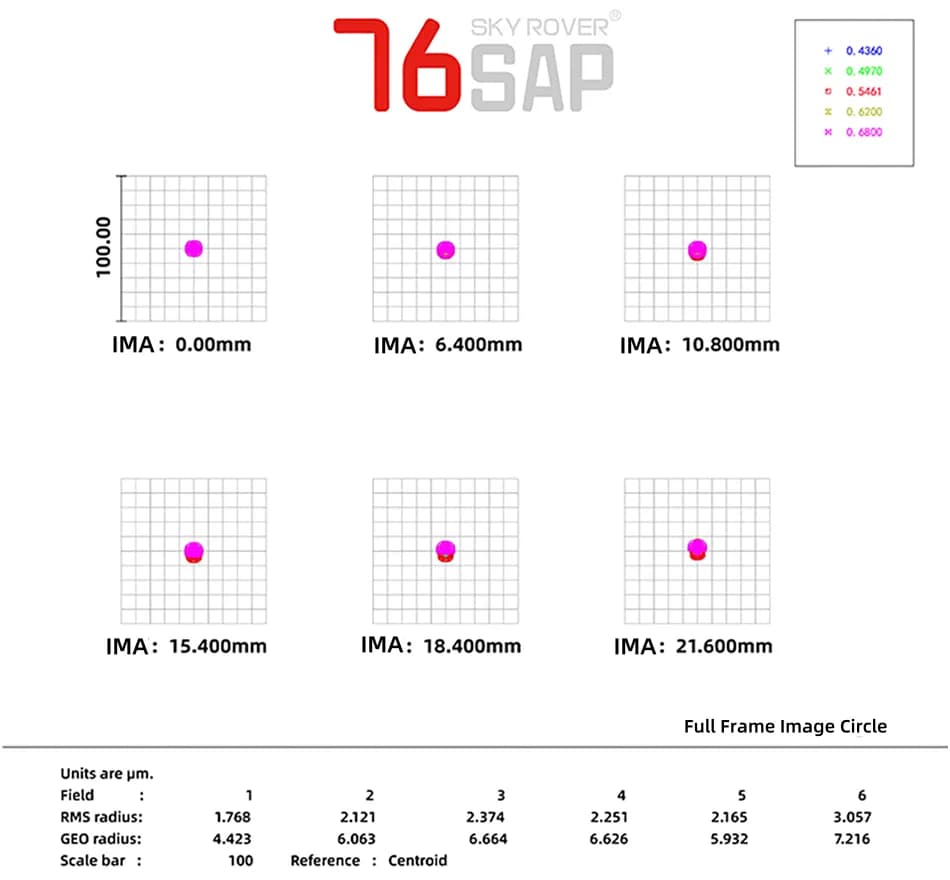

The Petzval air-spaced quintuplet optics correct field curvature across a 45 mm usable image circle, so many full-frame cameras can be used without a separate field flattener. That simplifies the imaging train and helps keep stars sharp to the frame edge on large sensors.

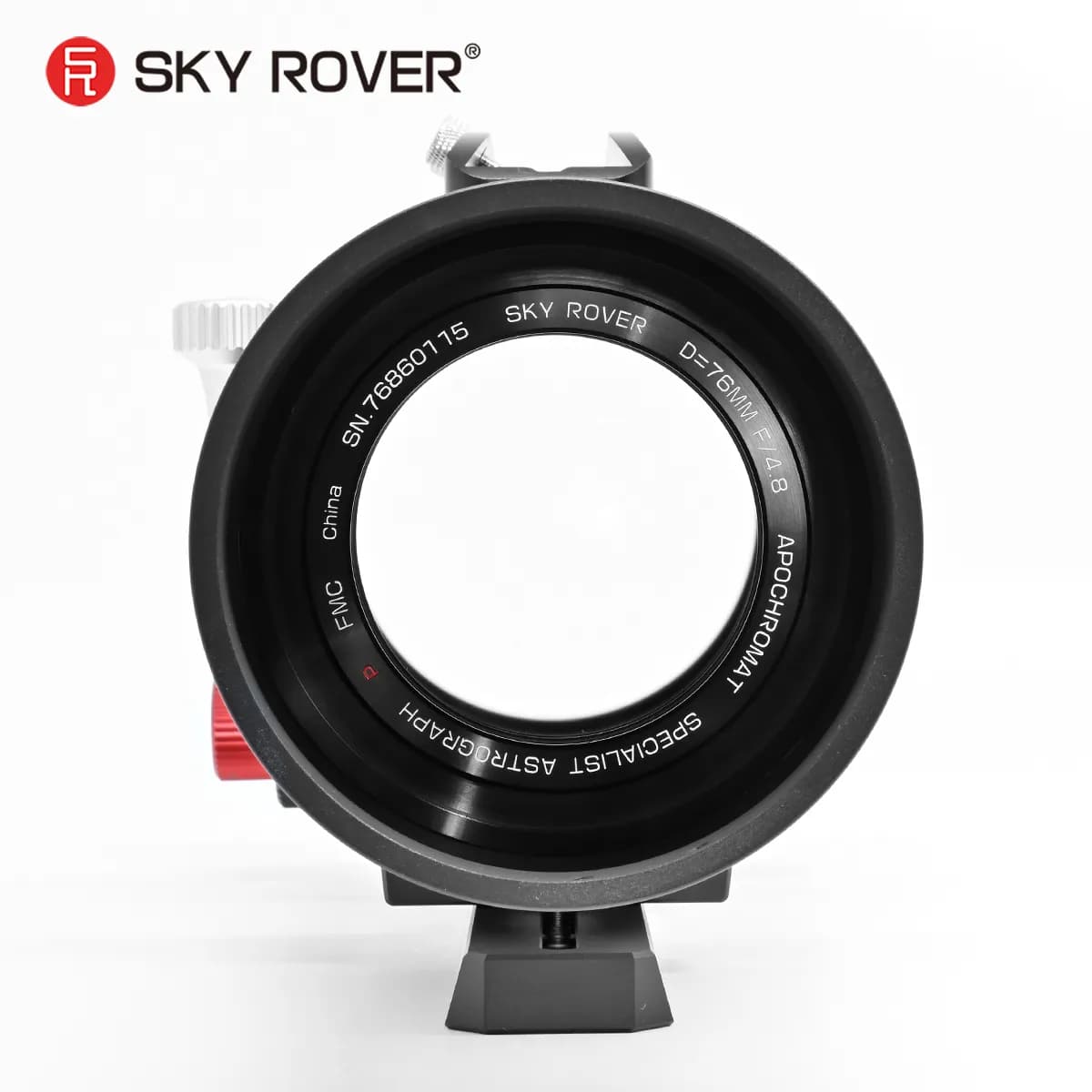

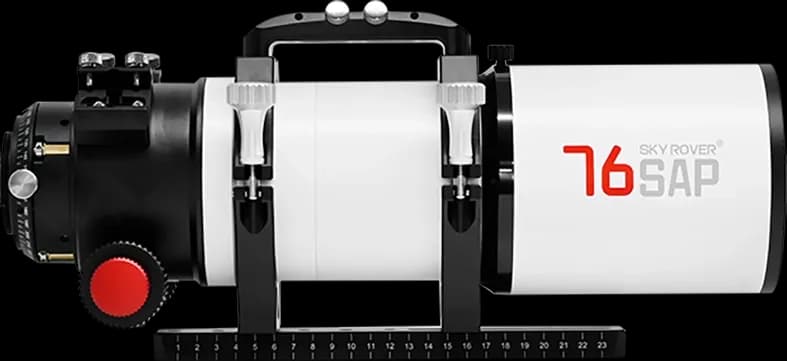

With a 365 mm focal length and an f/4.8 focal ratio, the 76SAP gathers light quickly for brighter frames and shorter integration times compared with slower refractors. The compact focal length also gives a wide field of view that suits large nebulae and star fields.

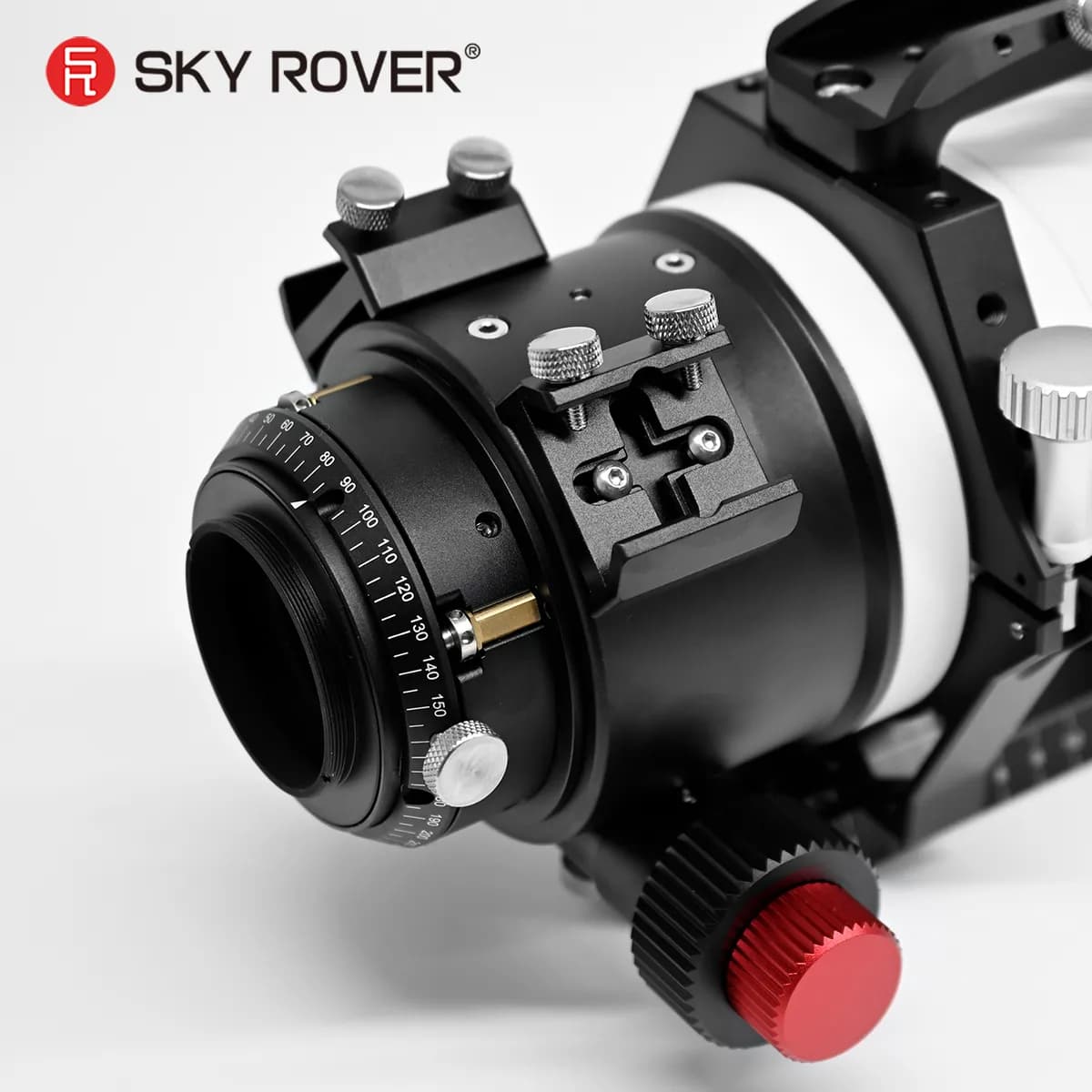

A 3.3 inch dual-speed rack-and-pinion focuser provides 38 mm of effective travel for precise focus and spacing with cameras and flatteners. The built-in focal plane adjuster offers tilt correction and camera rotation, making it easier to square and frame the sensor without extra adapters.

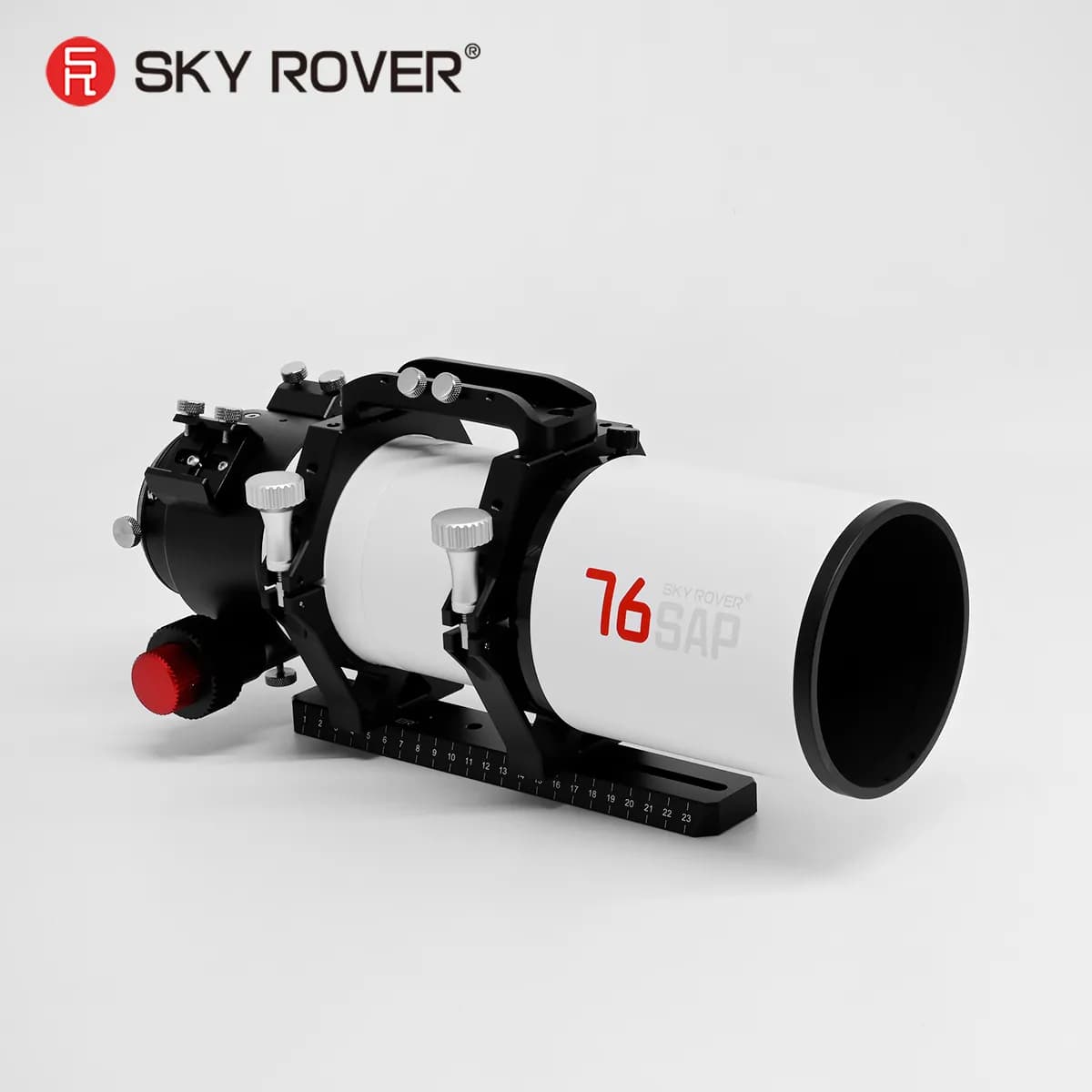

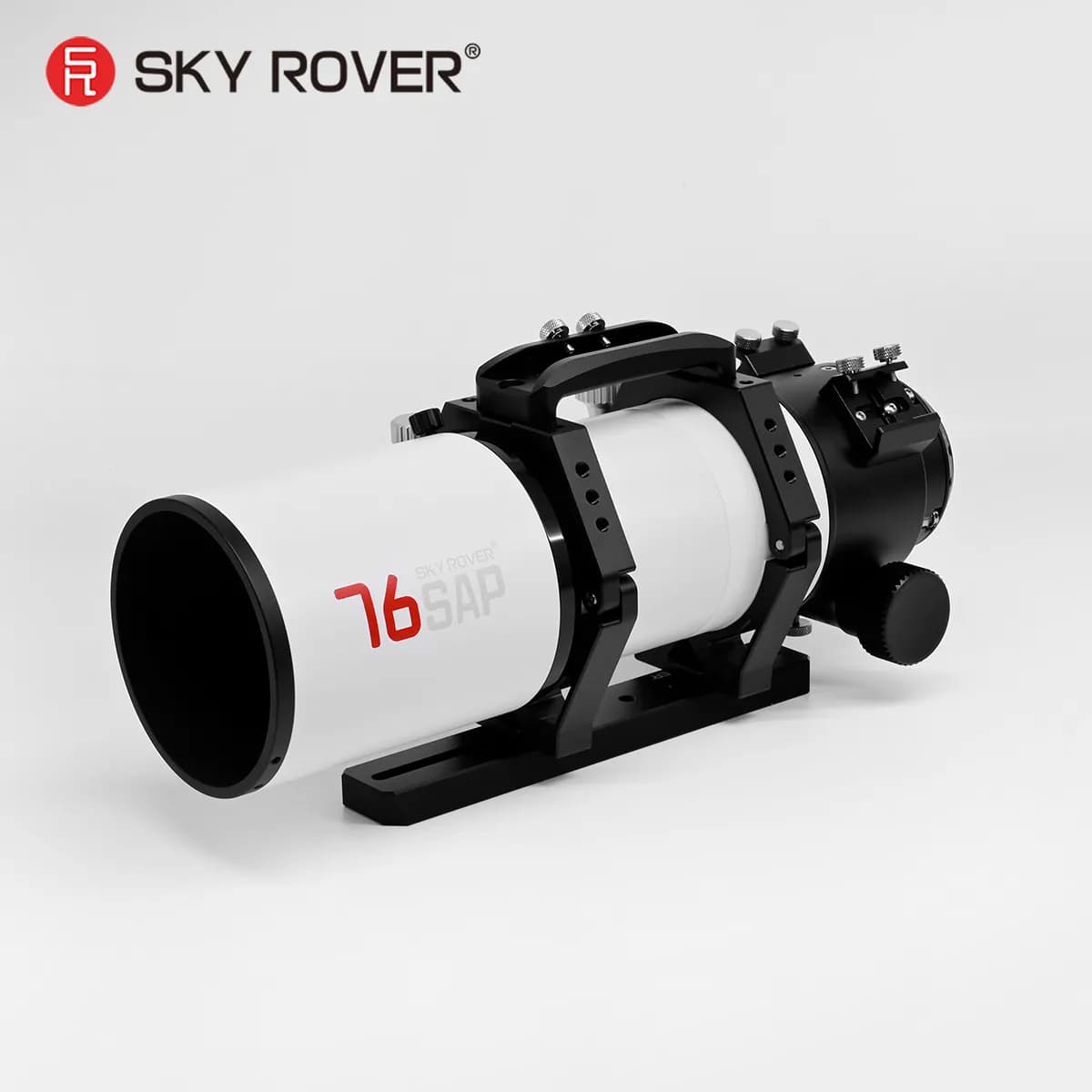

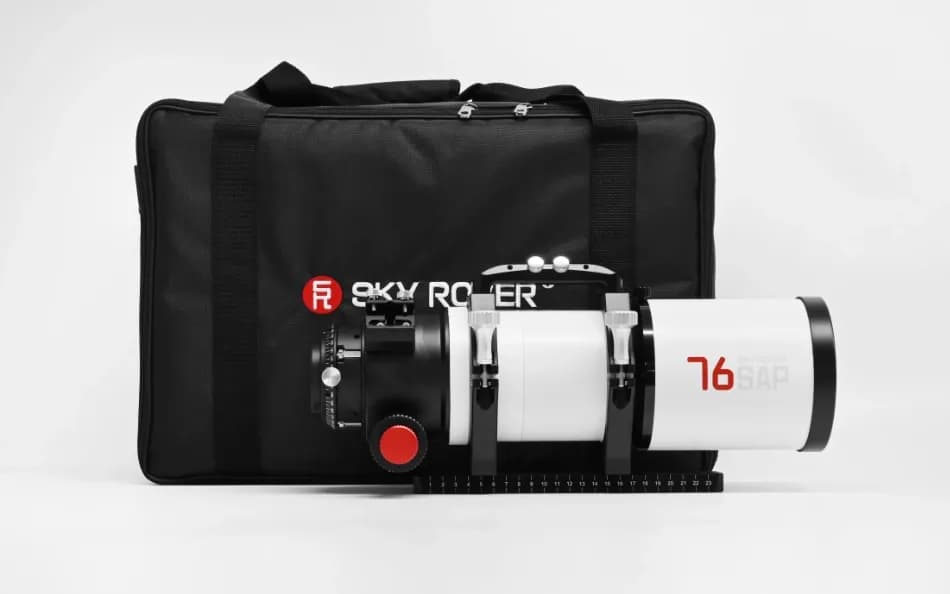

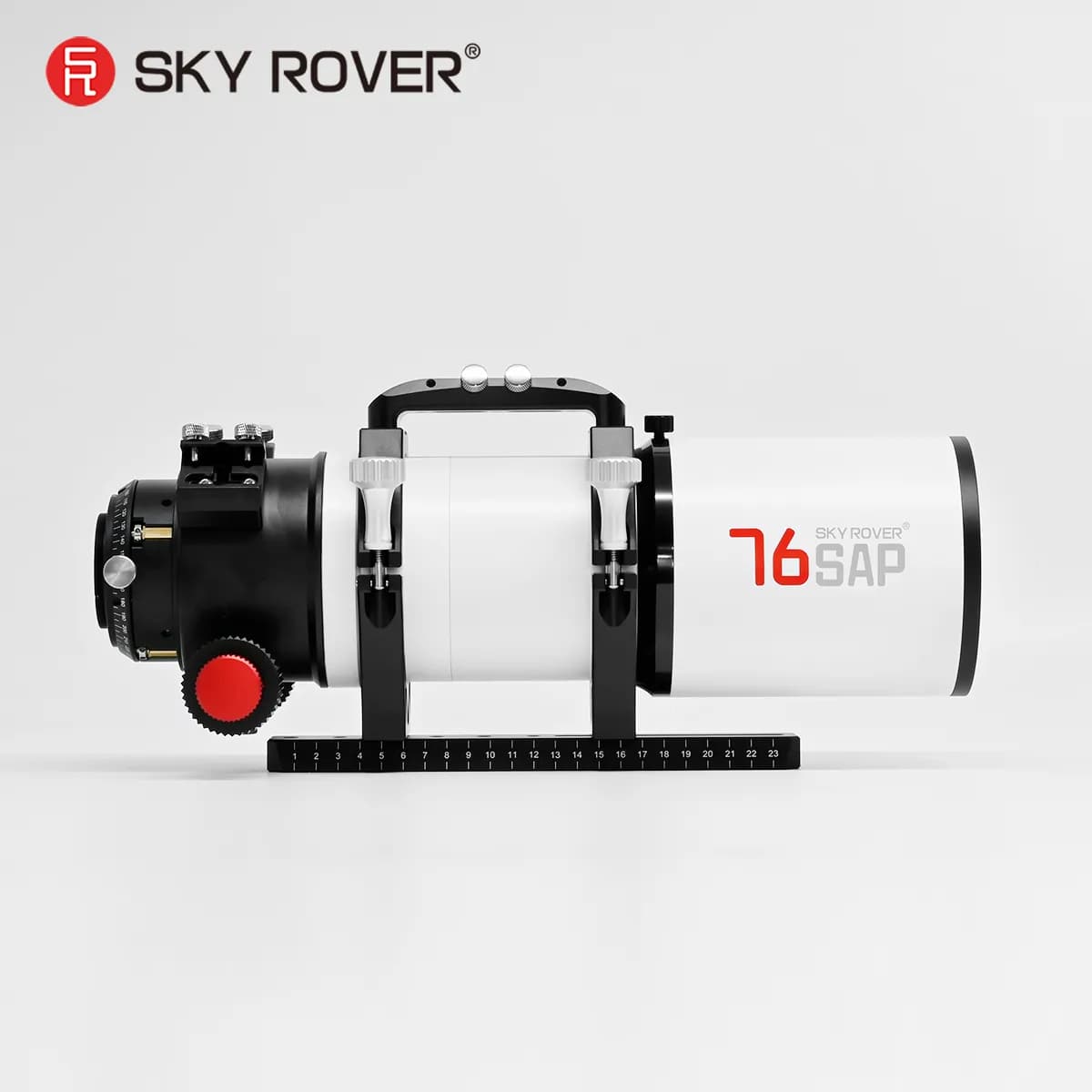

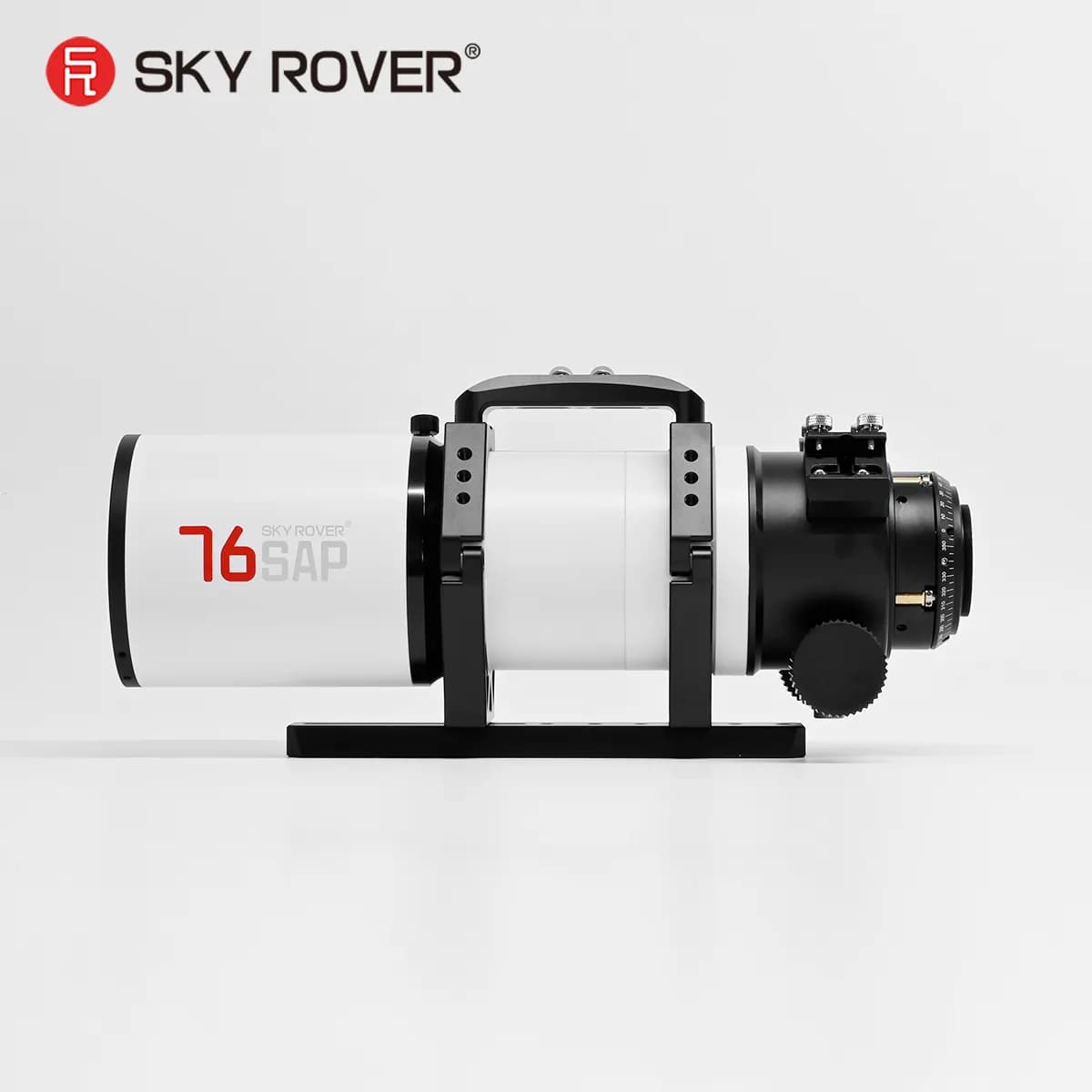

A CNC-machined aluminum OTA, included tube rings, a Vixen-style dovetail and carry handle create a stable mounting platform. The retractable dew shield keeps overall length compact for travel, while the package list includes dual finder bases and a soft carry bag for safe transport.
Sky Rover 76SAP
The 76SAP is described as having a native flat field and a 45 mm usable image circle, intended to support full-frame cameras without a separate field flattener.
The scope uses a 3.3 inch dual-speed rack-and-pinion focuser with 38 mm effective travel. Camera interfaces listed are M54 x 0.75 and M48 x 0.75.
The optical specification lists a 365 mm focal length and an f/4.8 focal ratio.
Included items specified are the Sky Rover 76SAP OTA, tube rings, Vixen-style dovetail plate, carry handle, dual finder bases, and a soft carry bag.
| Aperture | 76 mm |
| Focal Length | 365 mm |
| Focal Ratio | f/4.8 |
| Optical Design | Air-spaced quintuplet Petzval APO |
| Image Circle | 45 mm (Full Frame) |
| Total Length (dew shield contracted) | 352.8 mm |
| Total Length (dew shield extended) | 413.9 mm |
| Dew Shield Outer Diameter | 121 mm |
| OTA Weight | 4.29 kg |
| Gross Weight (with tube ring & dovetail) | 5.26 kg |
| Focuser | 3.3" dual-speed rack-and-pinion focuser |
| Focuser Travel | 38 mm effective travel |
| Camera Interface | M54 x 0.75 / M48 x 0.75 |
| Adjustment Features | Integrated tilt adjustment and rotation adjustment |
