Explore 126 MA

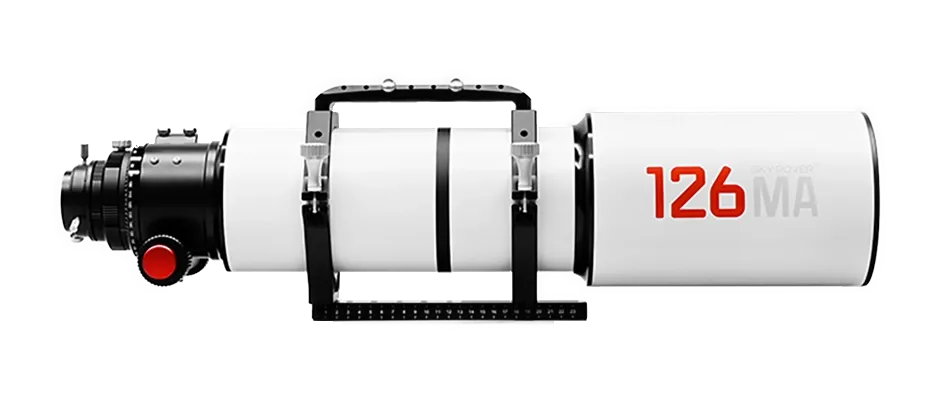

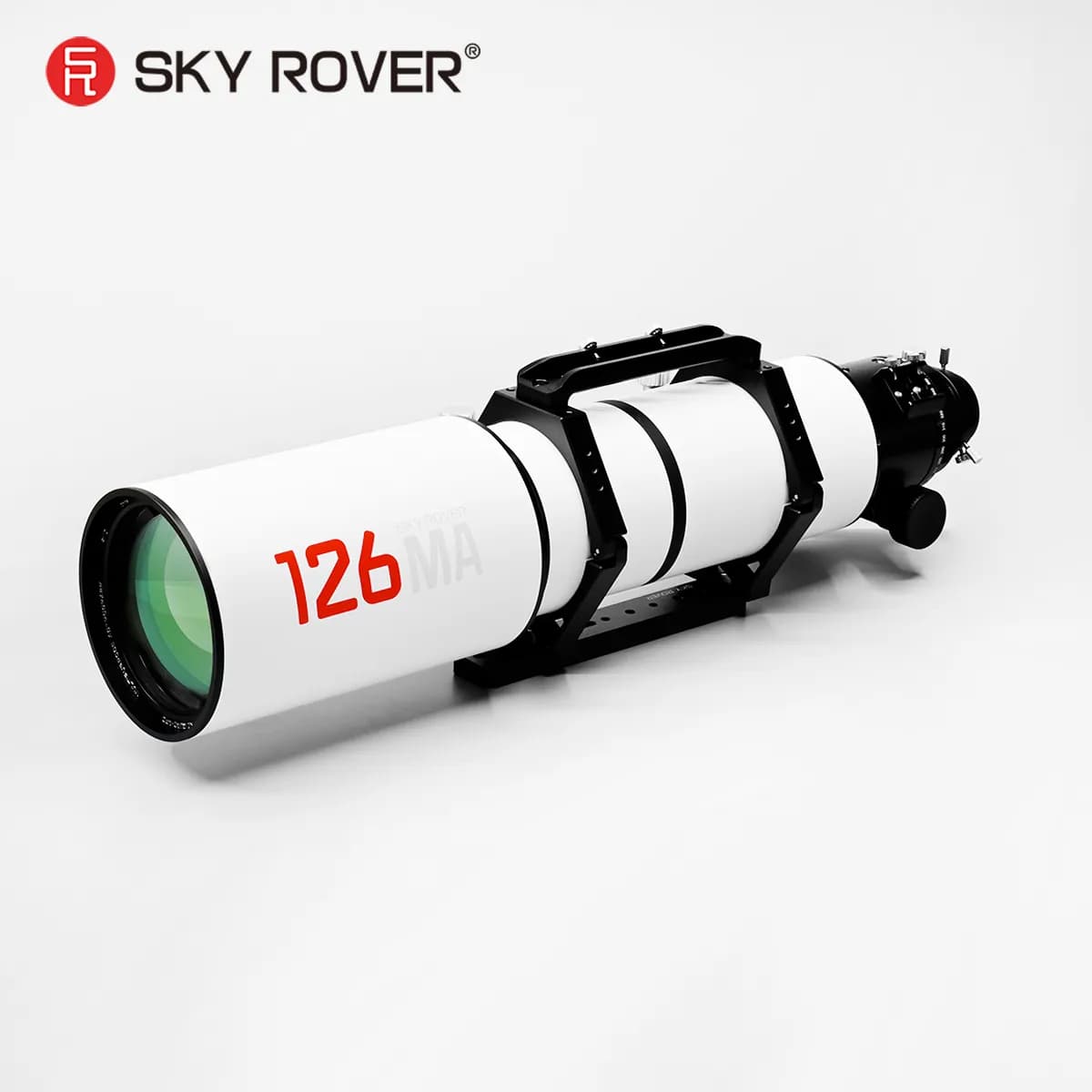

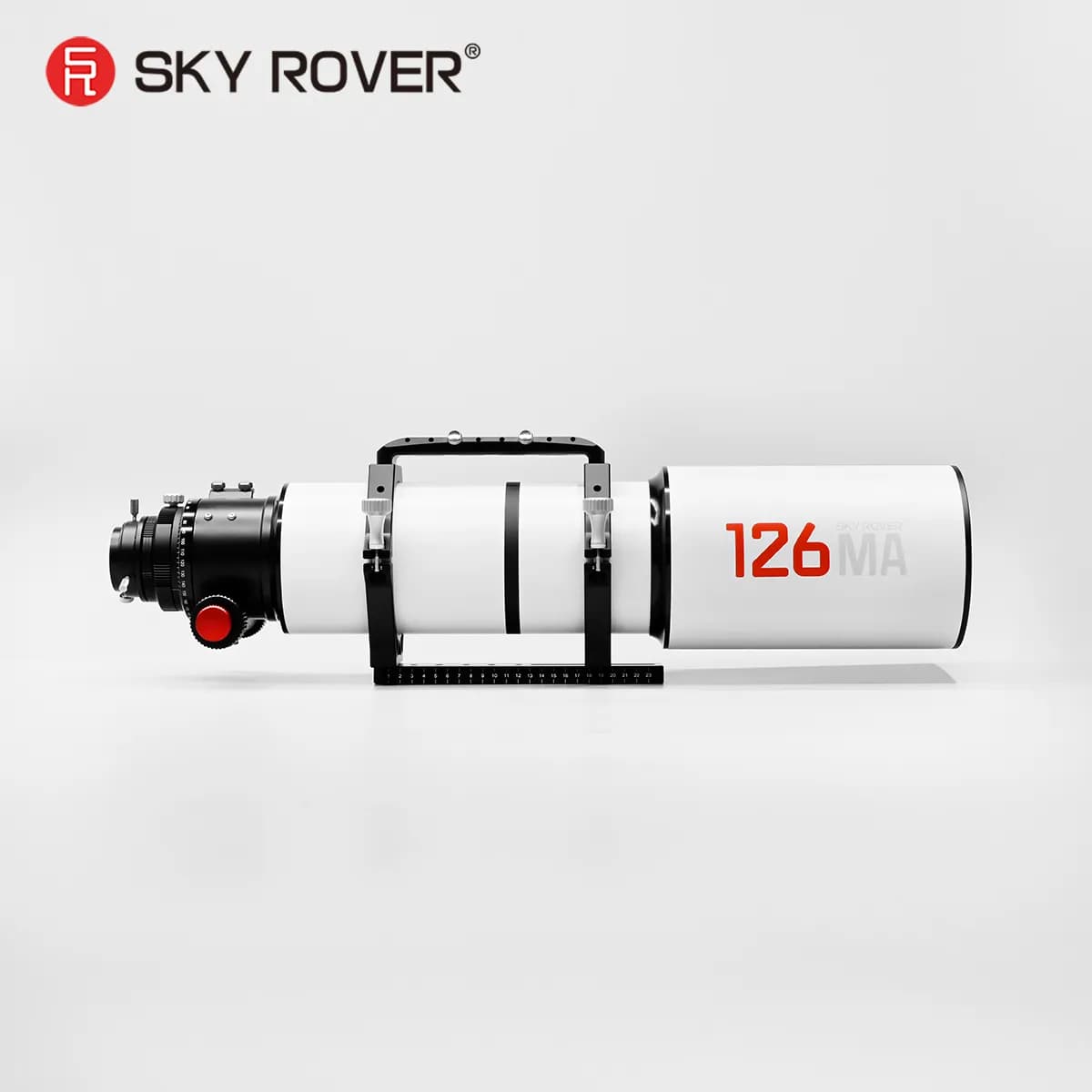

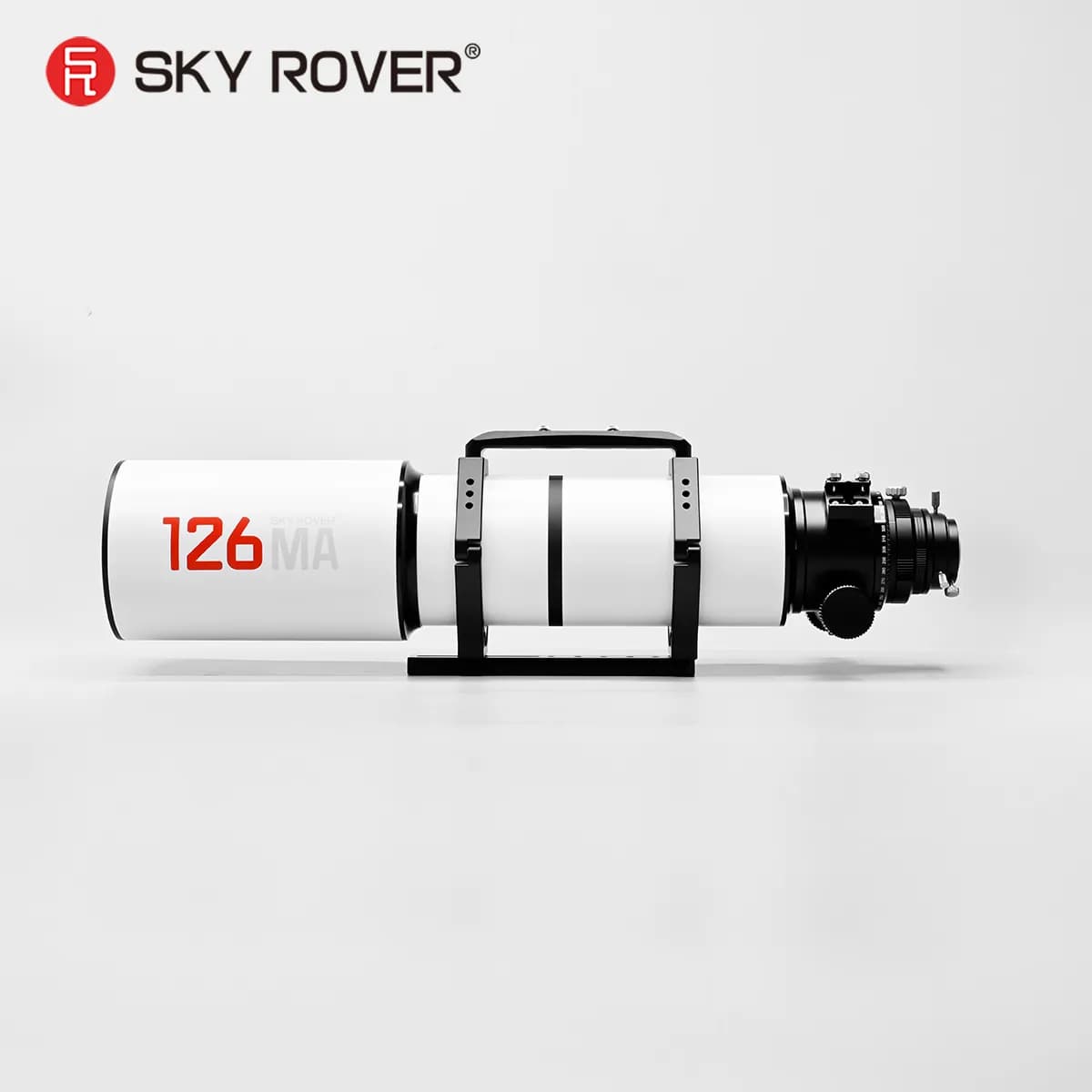

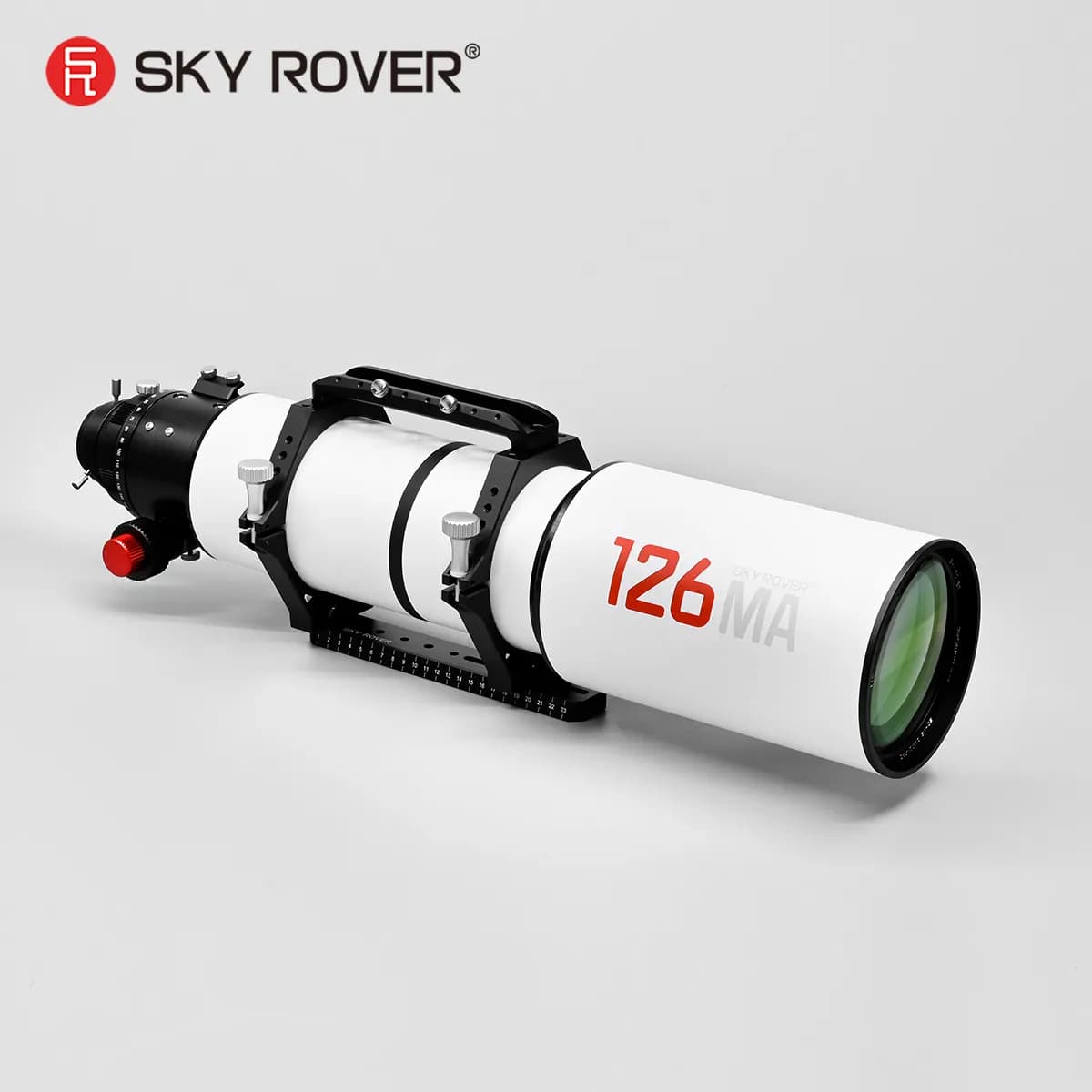

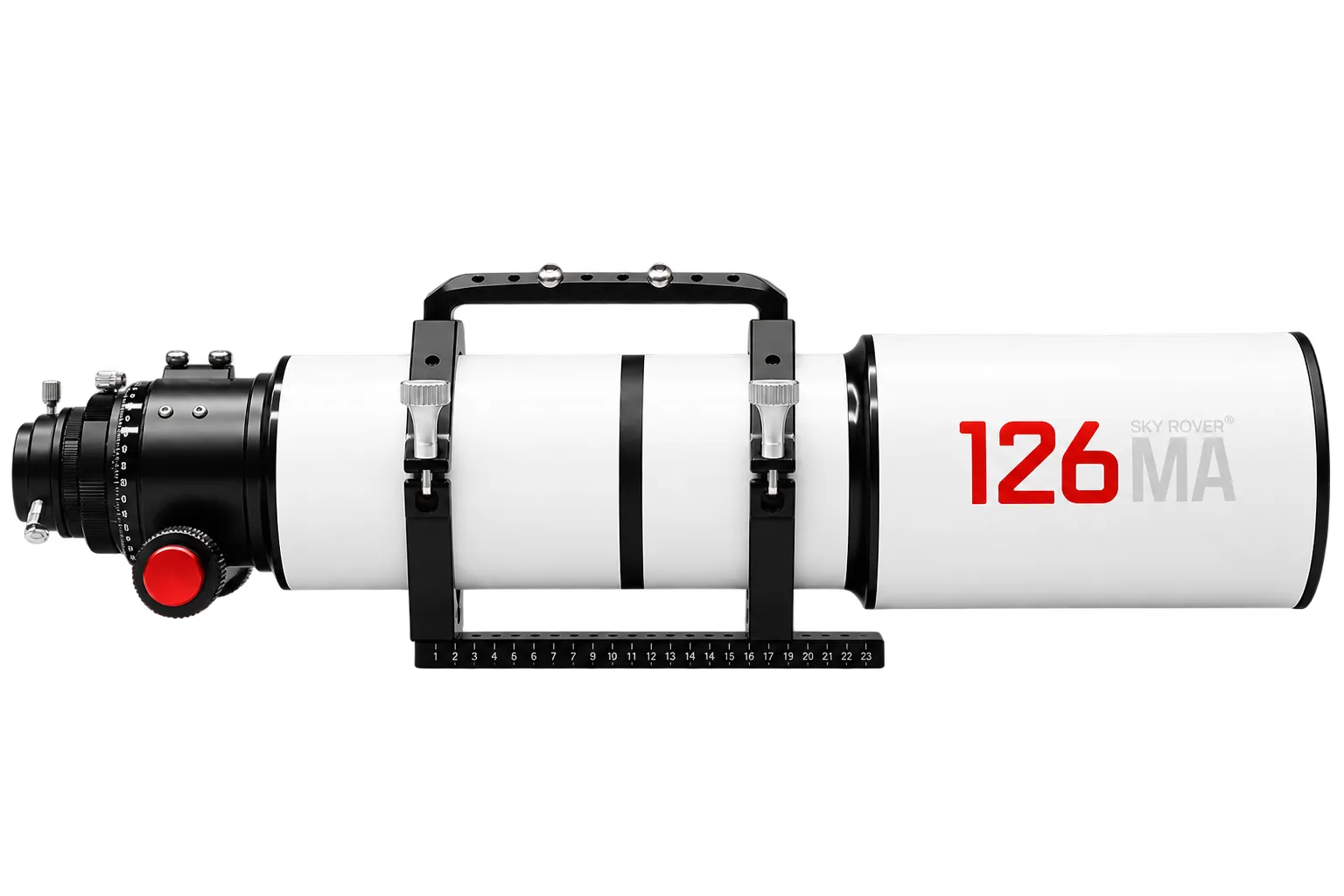

The 126MA pairs a 126 mm aperture with a native flat field for prime-focus photography, built to cover full-frame sensors without extra flatteners. It also keeps a user-friendly f/7 focal ratio so visual use or manual focusing stays straightforward while still yielding sharp images.
126 mm native flat-field astrograph
Full-frame prime-focus imaging
Dual ED optical design
3.2-inch dual-speed R&P focuser
Visual and imaging friendly design

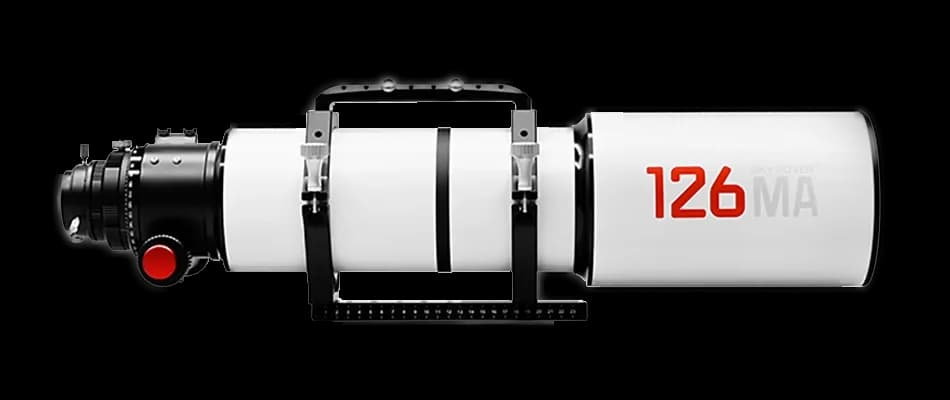

The optical layout delivers a 44 mm image circle that supports full-frame sensors at prime focus. That means you can use large-format cameras without adding a separate field flattener, keeping the imaging train simpler and better aligned for wide sensors.

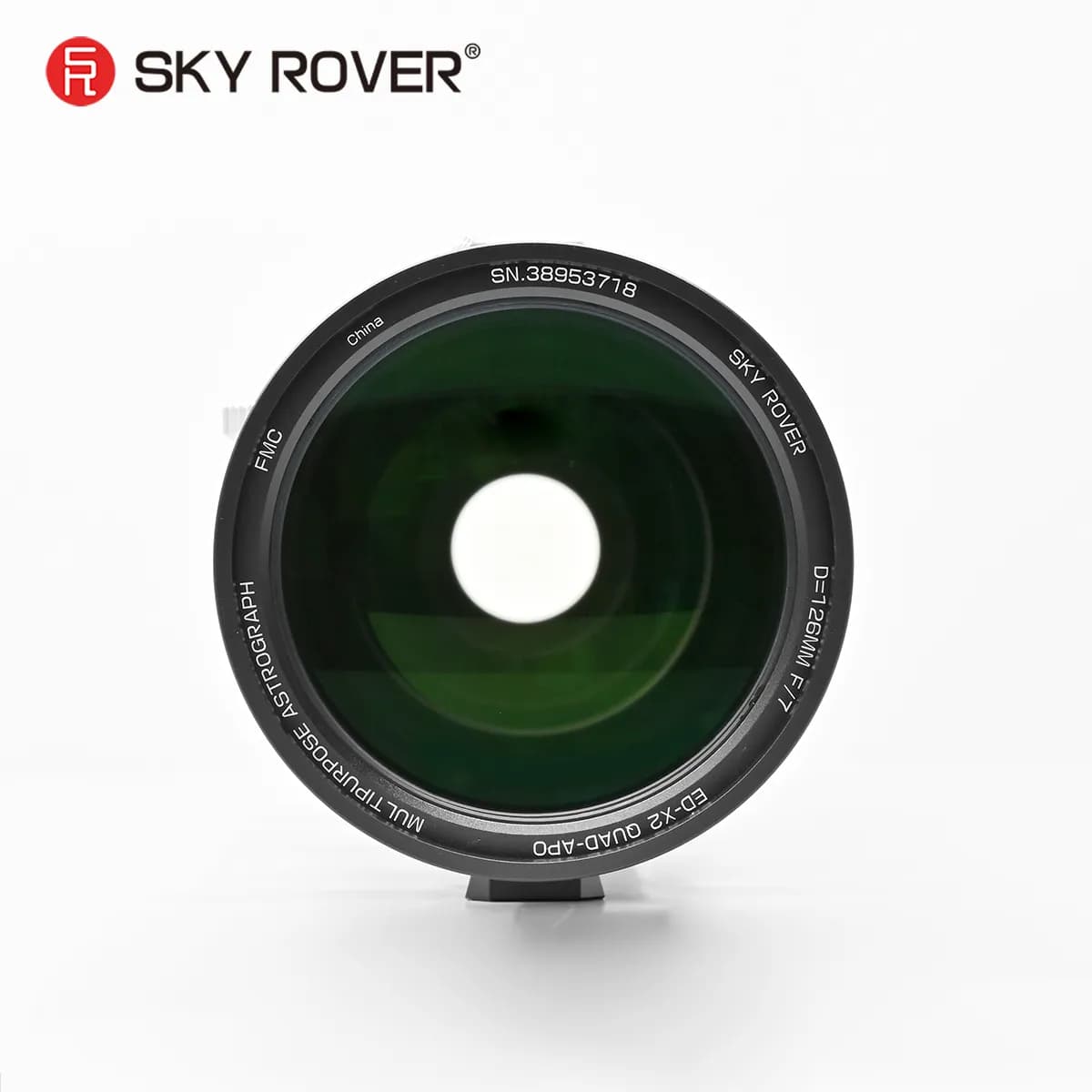

Two extra-low dispersion (ED) elements are placed in the front group to help reduce chromatic aberration. In practice that produces finer star colour and improved sharpness across the field compared with simple achromats, which matters for high-resolution planetary work and for wide-field targets.
A 3.2-inch dual-speed rack-and-pinion focuser gives precise focus control for both visual and camera setups. The rear accepts common interfaces: M63 x 1, M54 x 0.75, M48 x 0.75 and 2-inch fittings, so you can attach cameras, adapters and accessories without custom machining.
Although designed for imaging, the 126MA supports visual accessories such as diagonals and eyepieces and can be adapted for binoviewer-style observing with appropriate add-ons. An optional 0.8x reducer is available for users who want a faster focal ratio while retaining edge performance on large sensors.

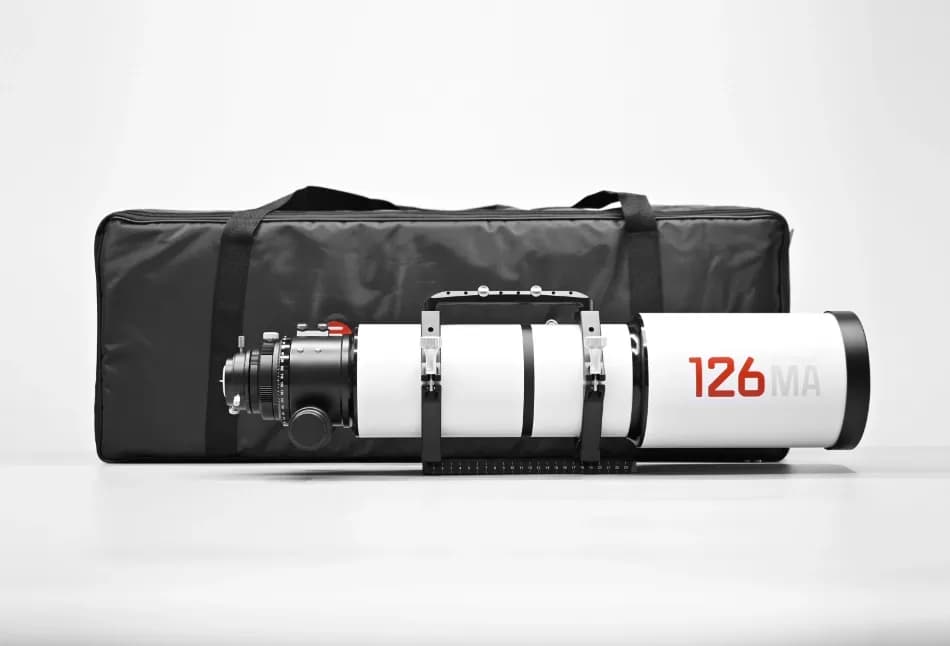

The saved contents list tube rings, a Vixen-style dovetail plate, handle, finder base, a 2-inch adapter, M54 and M48 adapters, a focus extension tube and a soft carry bag. The contents entry also names an OTA; note that the saved list refers to a 106MA OTA which conflicts with the product model 126MA.
| Aperture | 126 mm |
| Focal Length | 882 mm |
| Focal Ratio | f/7 |
| Optical Design | Air-spaced quadruplet, native flat field, with two ED glass lenses |
| Image Circle | 44 mm, full frame |
| Tube Length | 730 mm retracted, 970 mm extended |
| Dew Shield Outer Diameter | 139 mm |
| OTA Weight | 6.8 kg |
| Gross Weight (with tube ring & dovetail) | 8 kg |
| Focuser | 3.2-inch dual-speed rack-and-pinion focuser |
| Rear Interfaces | M63 x 1 / M54 x 0.75 / M48 x 0.75 / 2-inch |
| Optional Reducer | 0.8x reducer available |
