Explore 108 SAP

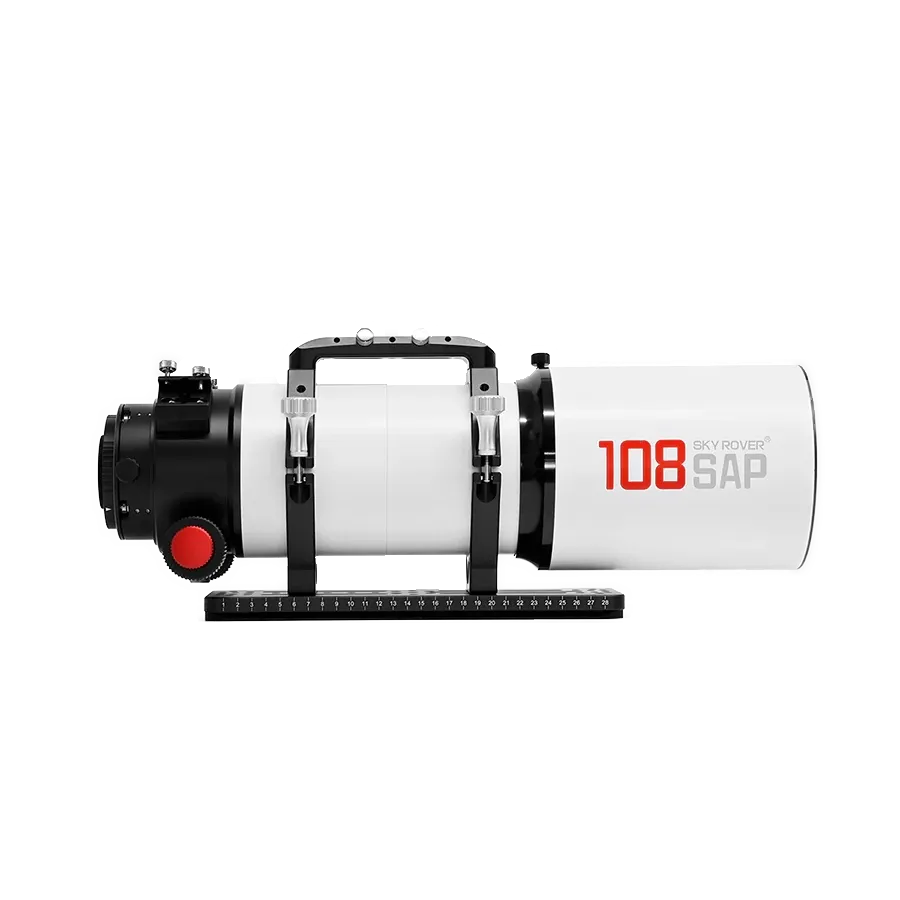

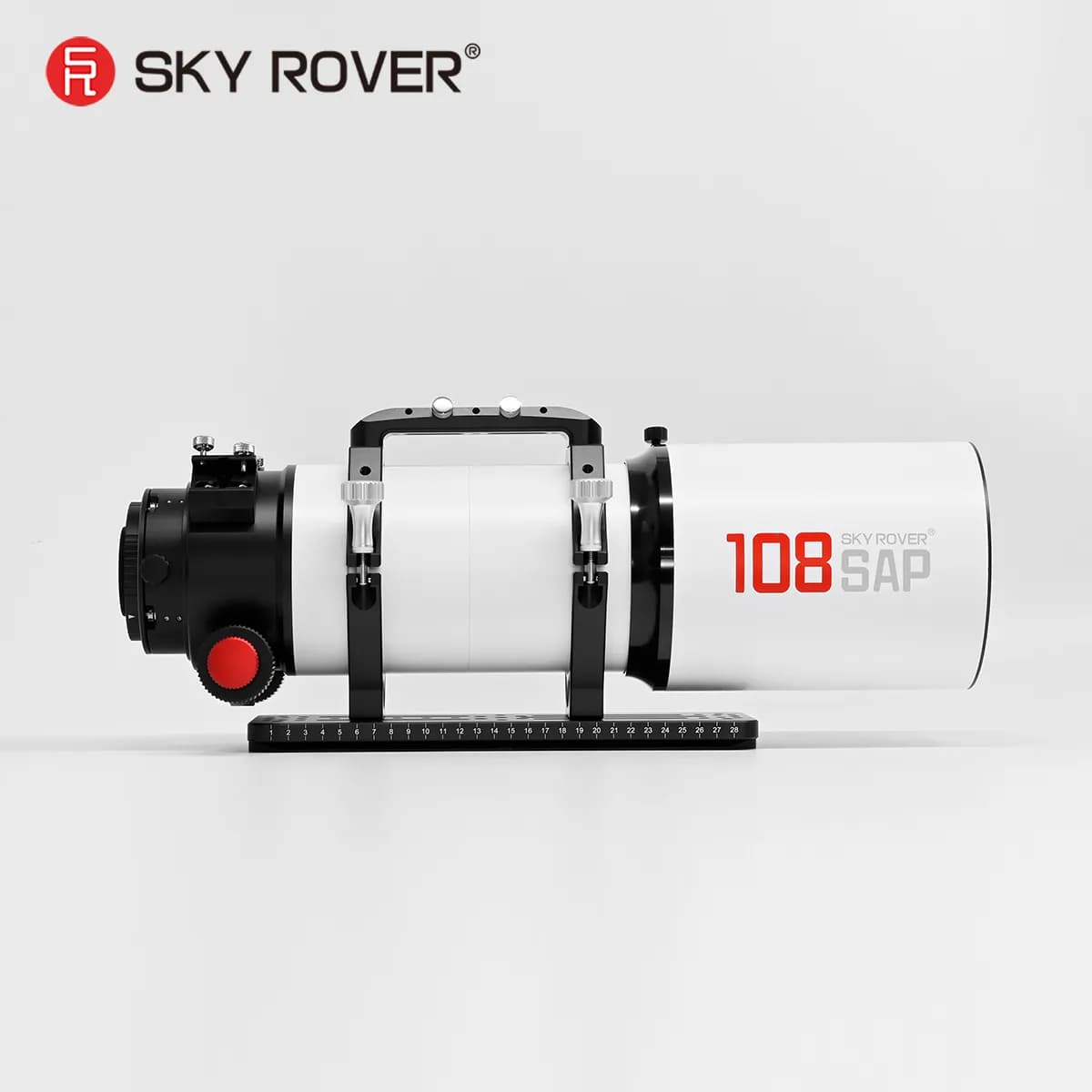

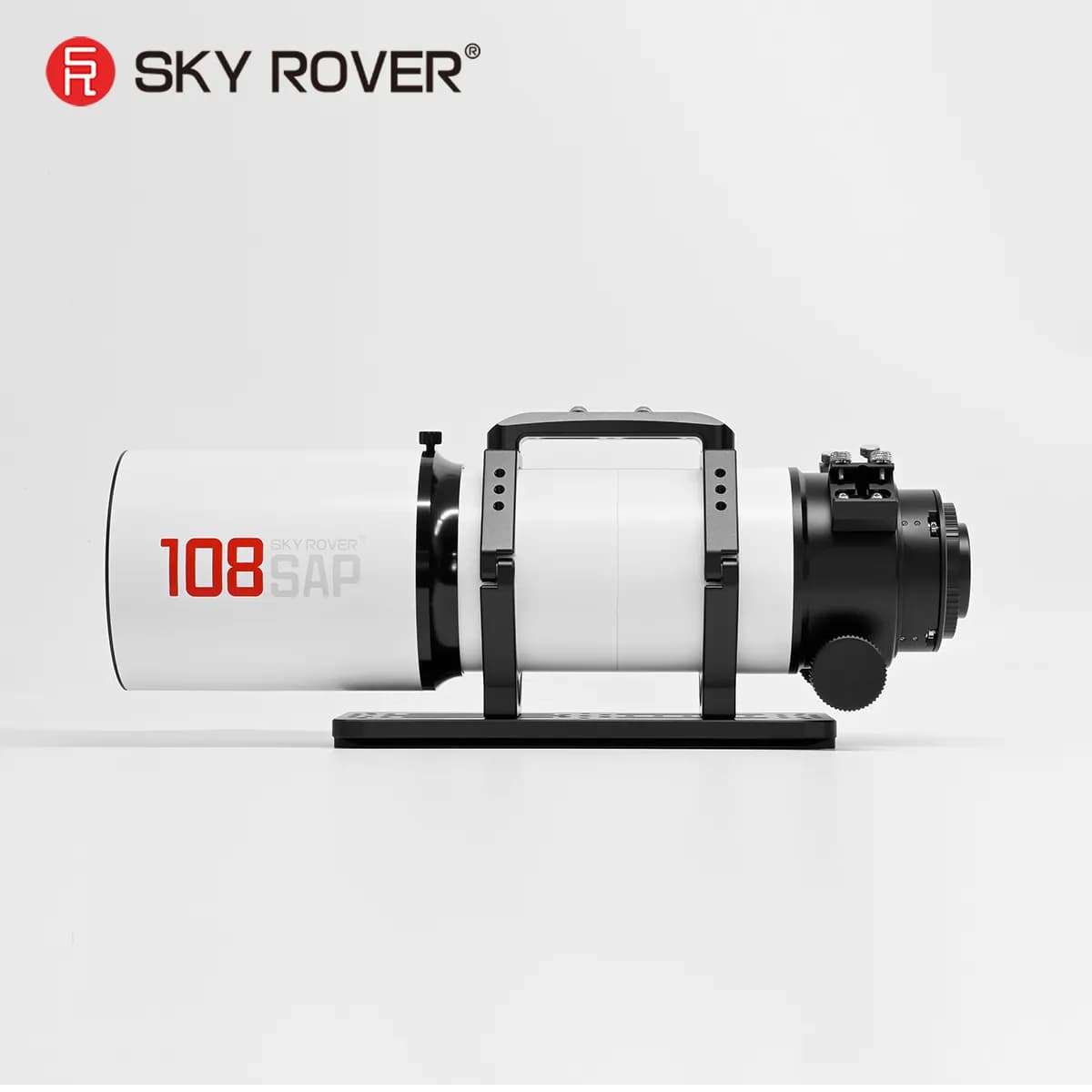

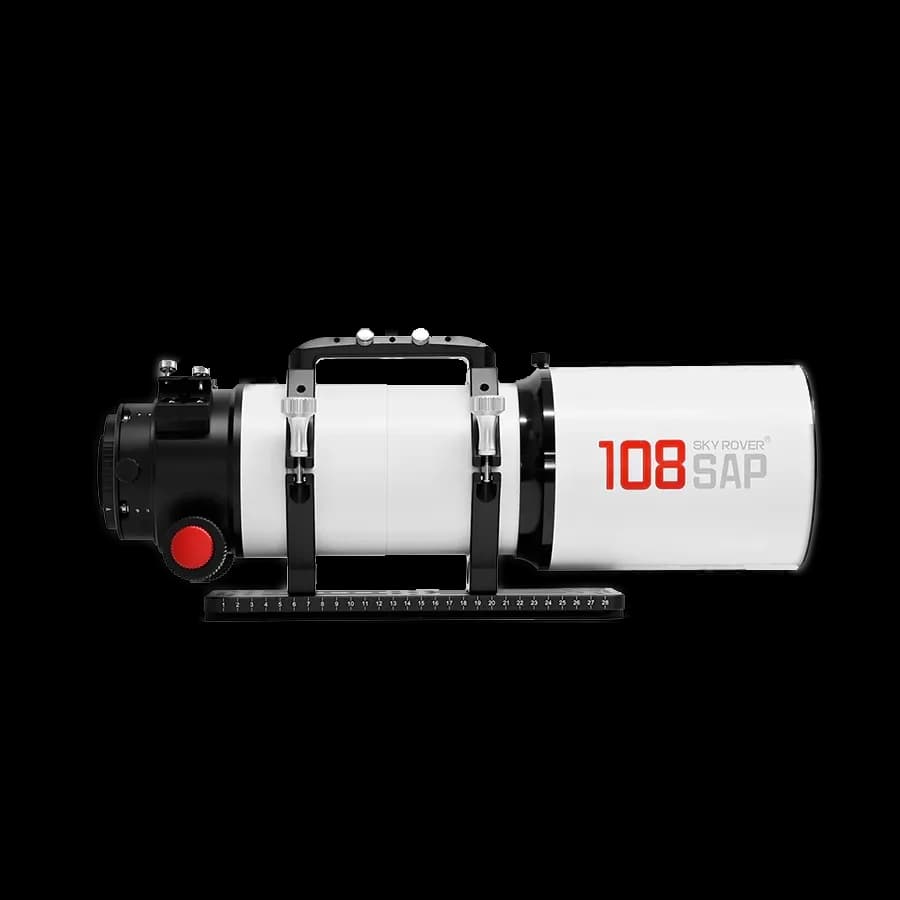

The 108SAP is a compact, fast Petzval astrograph tuned for medium-format astrophotography. Its 108 mm aperture and f/4.8 optics deliver bright, wide-field views while a native 55 mm flat image circle reduces the need for extra flatteners. Built features like a robust CNC tube and carrying case make it practical for serious imaging sessions.
Fast 108mm f/4.8 Petzval optical system
Native flat field for full-frame imaging
3.7" dual-speed rack-and-pinion focuser
Built-in tilt and rotation adjustment
Rigid CNC tube with rings, handle, and Vixen plate

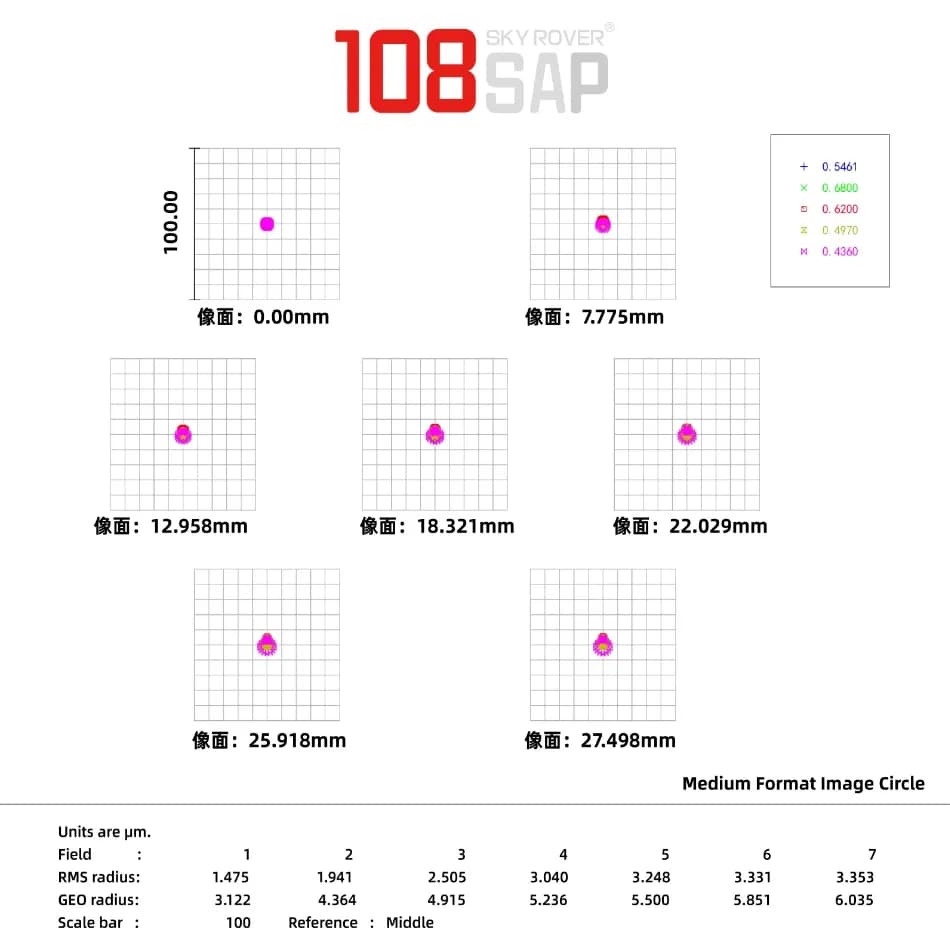

The air-spaced quintuplet Petzval design produces a native flat field across a 55 mm image circle. That means better corner performance on larger sensors without adding a separate field flattener, which simplifies the imaging train and helps preserve image quality at the edges.

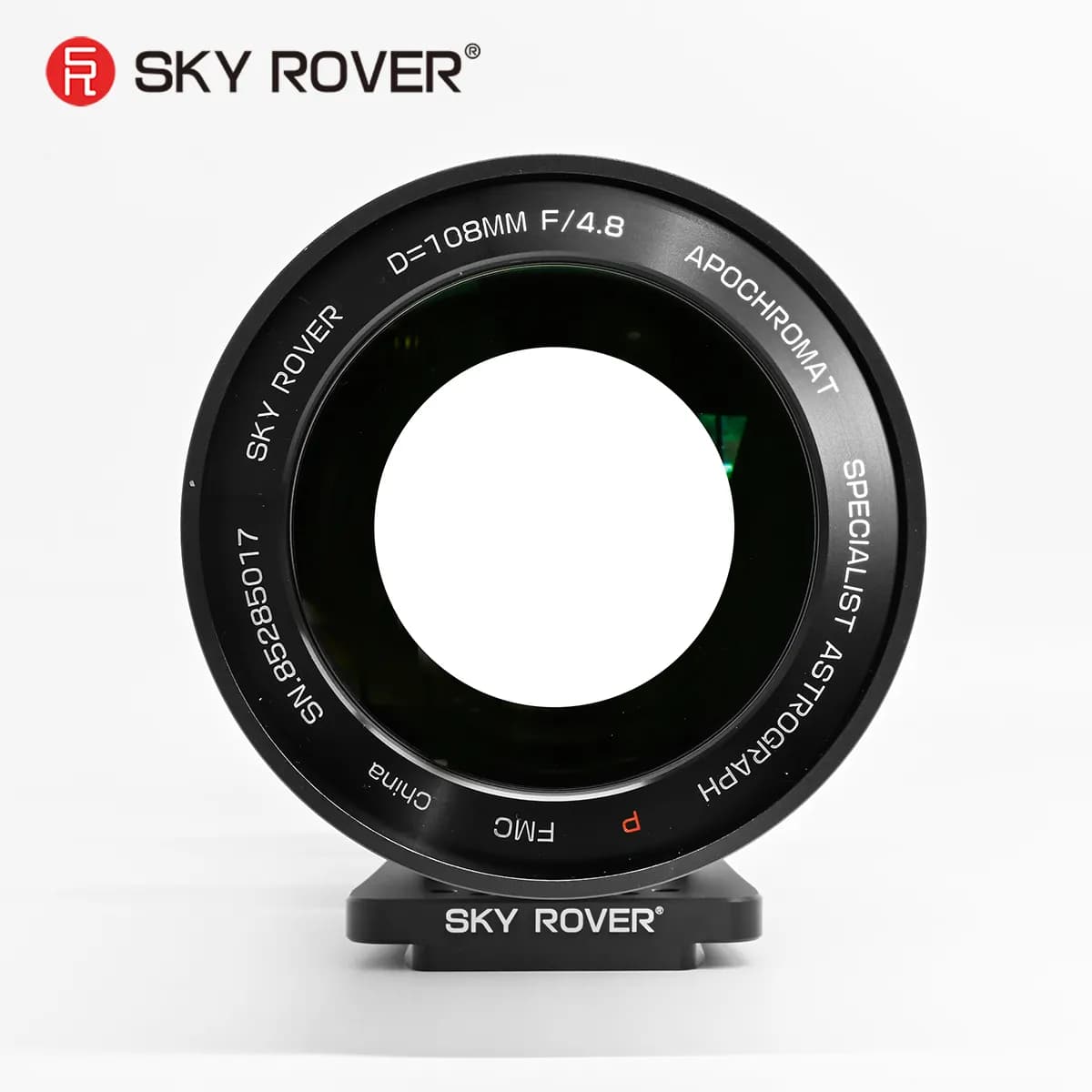

With a 108 mm aperture and 518 mm focal length at f/4.8, the 108SAP delivers a fast plate scale for collecting more light in shorter exposures. The quintuplet layout and specialty glass elements aim to keep stars sharp and well corrected across the field for wide-field deep-sky imaging.

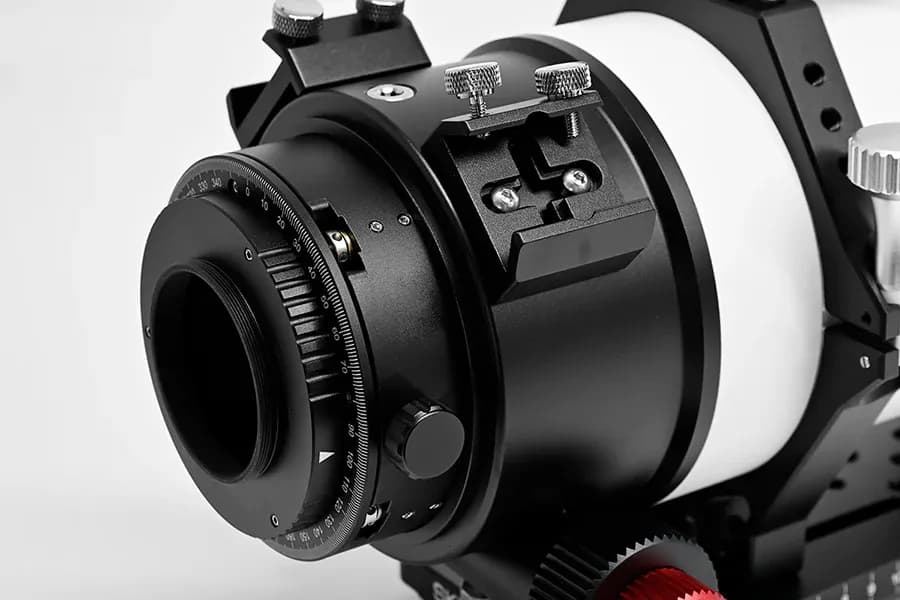

A 3.7 inch dual-speed rack-and-pinion focuser provides 35 mm of effective travel for accommodating heavy cameras and accessories. Integrated tilt and rotation adjustment lets you align the camera plane and frame orientation without extra adapters, helping achieve pinpoint focus and consistent corner illumination.

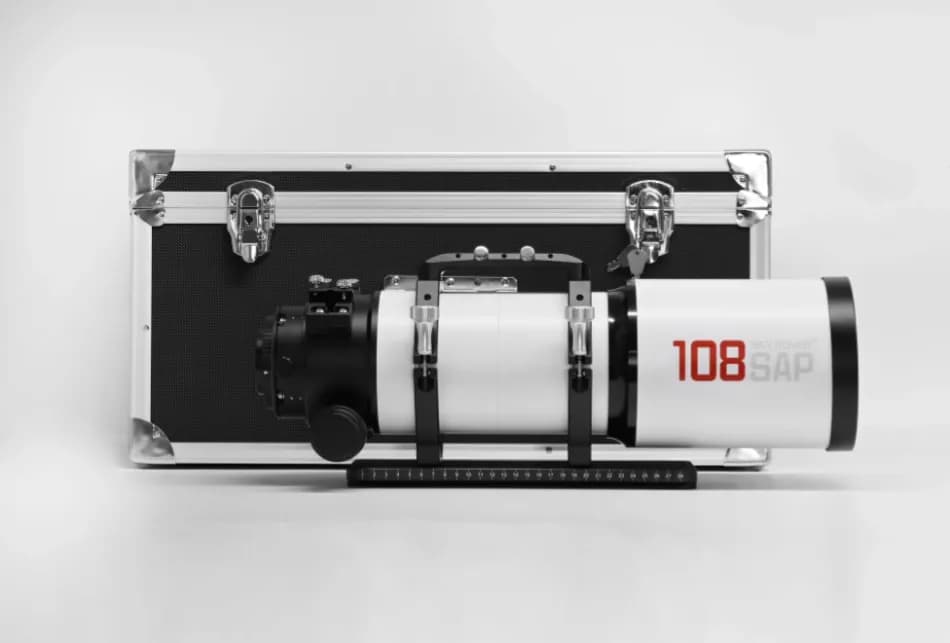

The OTA uses a CNC-machined aluminum tube, ships with tube rings, a Losmandy-style dovetail and a carry handle for stable mounting and easier handling. A retractable dew shield keeps the system compact for transport, and the package includes an aluminum carry case for safer storage and travel.

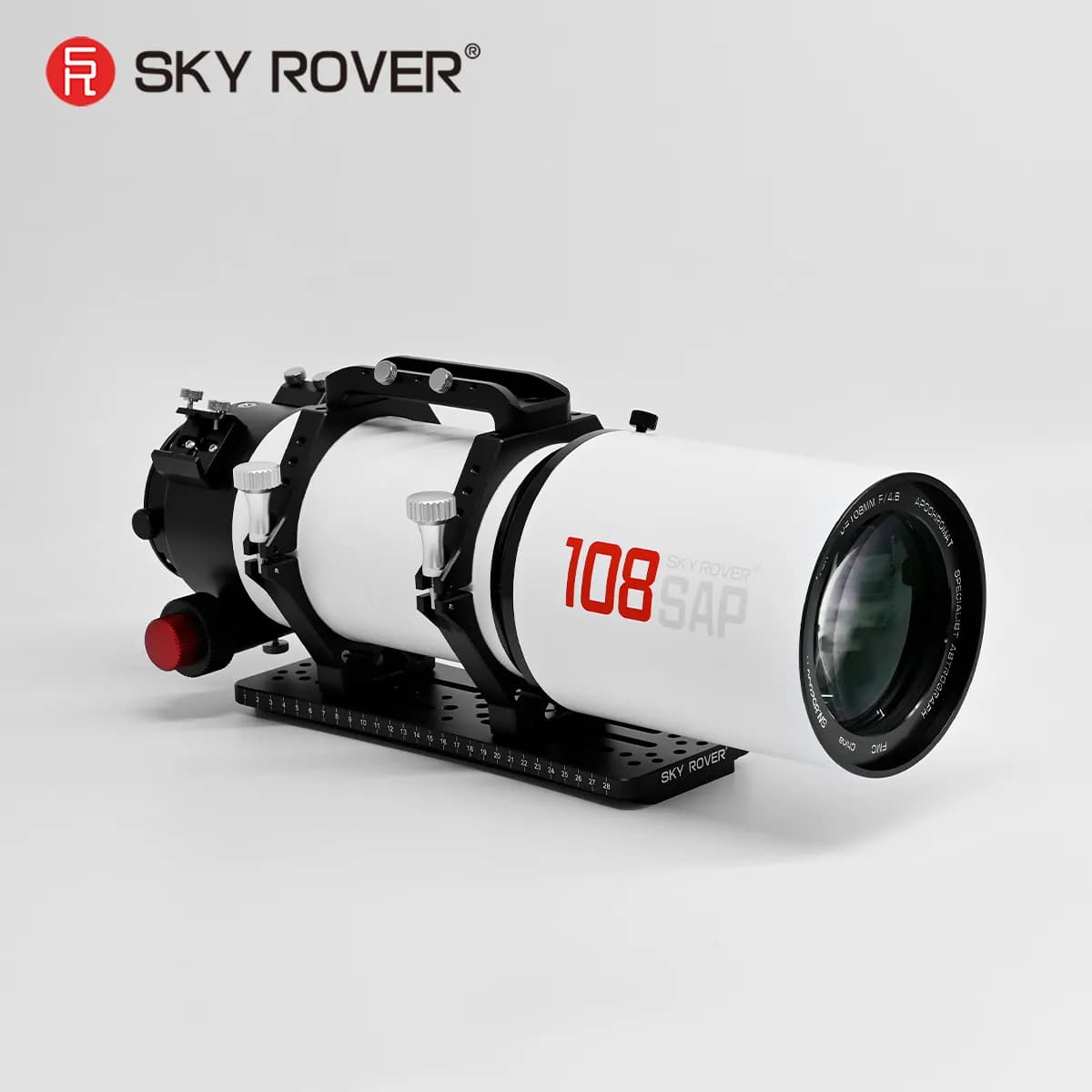

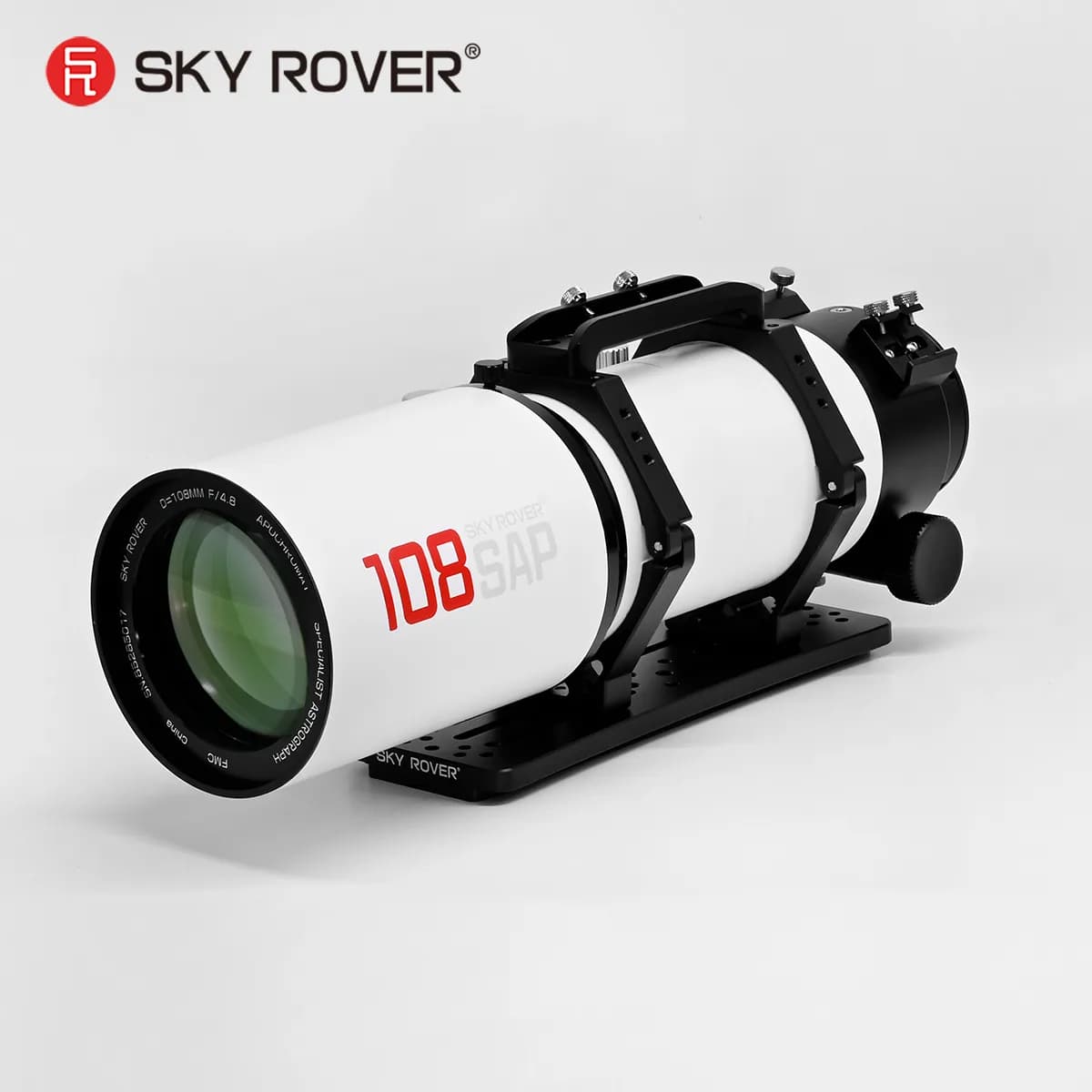

Sky Rover 108SAP
| Aperture | 108 mm |
| Focal Length | 518 mm |
| Focal Ratio | f/4.8 |
| Optical Design | Air-spaced quintuplet Petzval APO |
| Image Circle | 55 mm |
| Optics | Dual SD glass, one ED element, and HR glass |
| Total Length (dew shield contracted) | 513.2 mm |
| Total Length (dew shield extended) | 657.7 mm |
| Dew Shield Outer Diameter | 147 mm |
| OTA Weight | 7.2 kg |
| Gross Weight (with tube ring & dovetail) | 9 kg |
| Focuser | 3.7" dual-speed rack-and-pinion focuser |
| Focuser Travel | 35 mm effective travel |
| Camera Interface | M54 x 0.75 |
| Adjustment Features | Integrated tilt adjustment and rotation adjustment |
