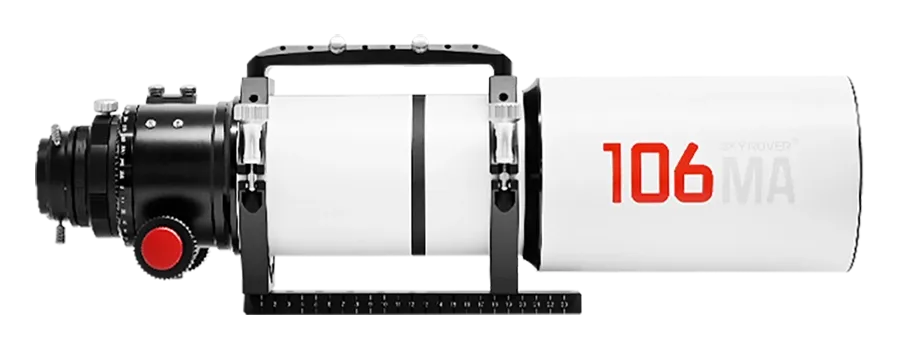

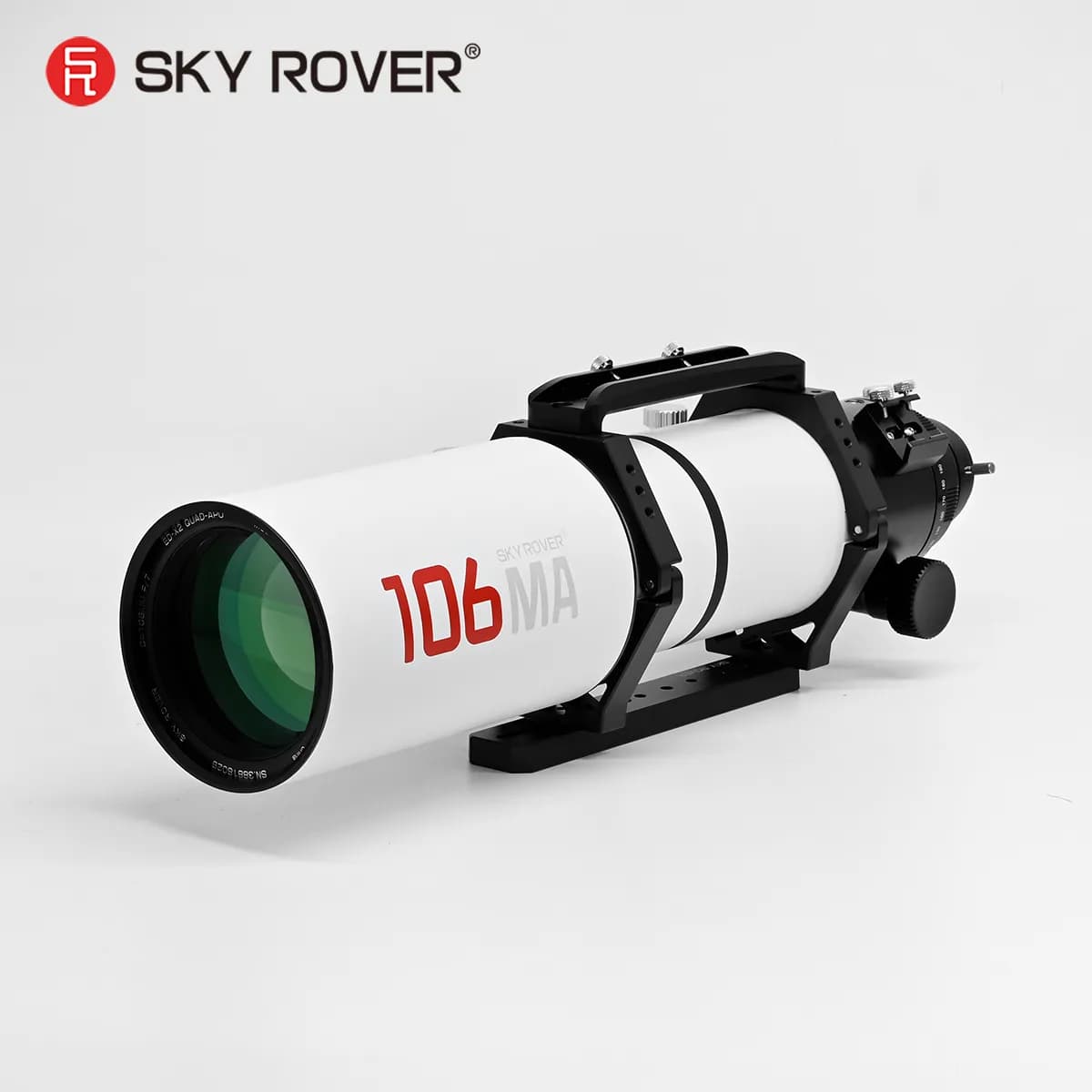

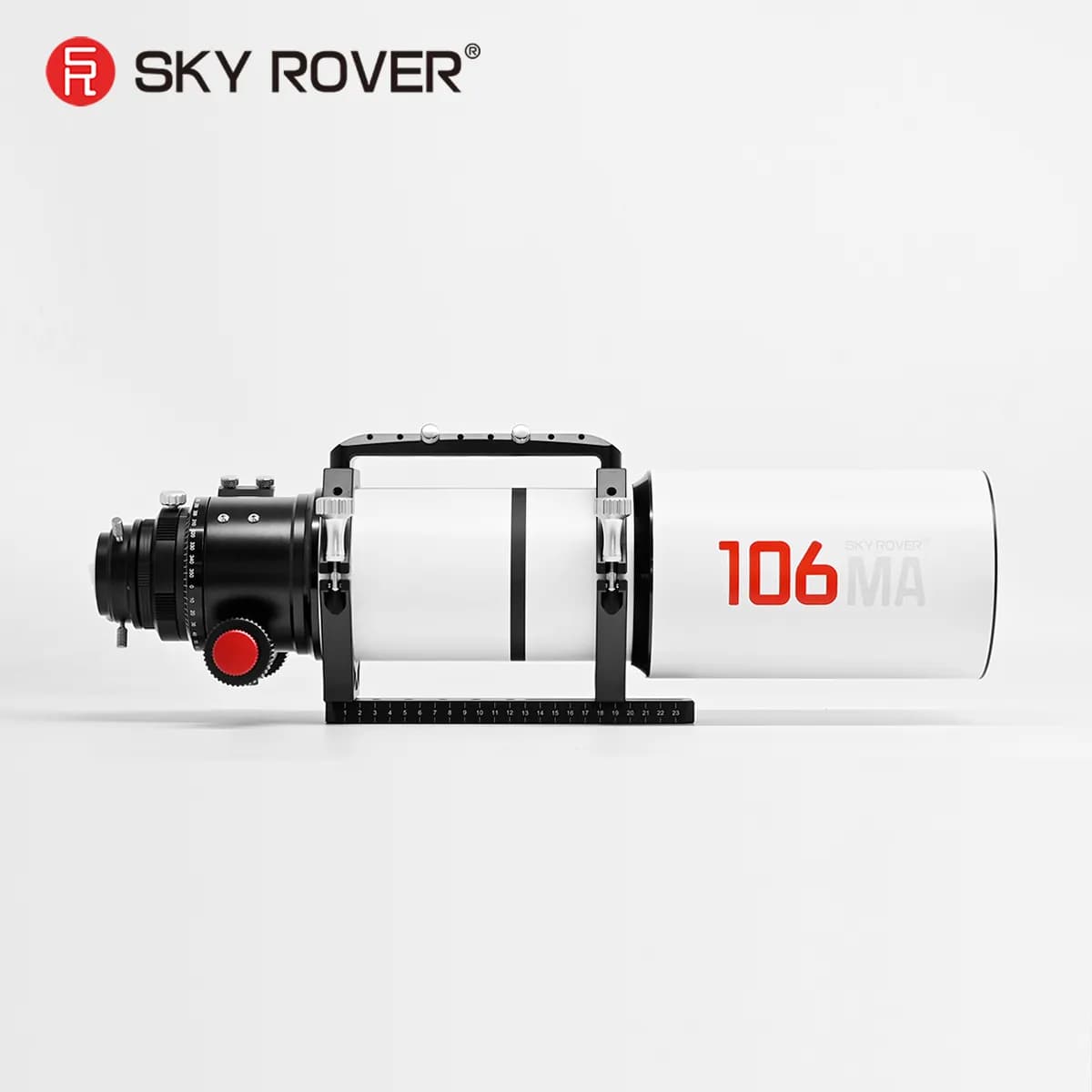

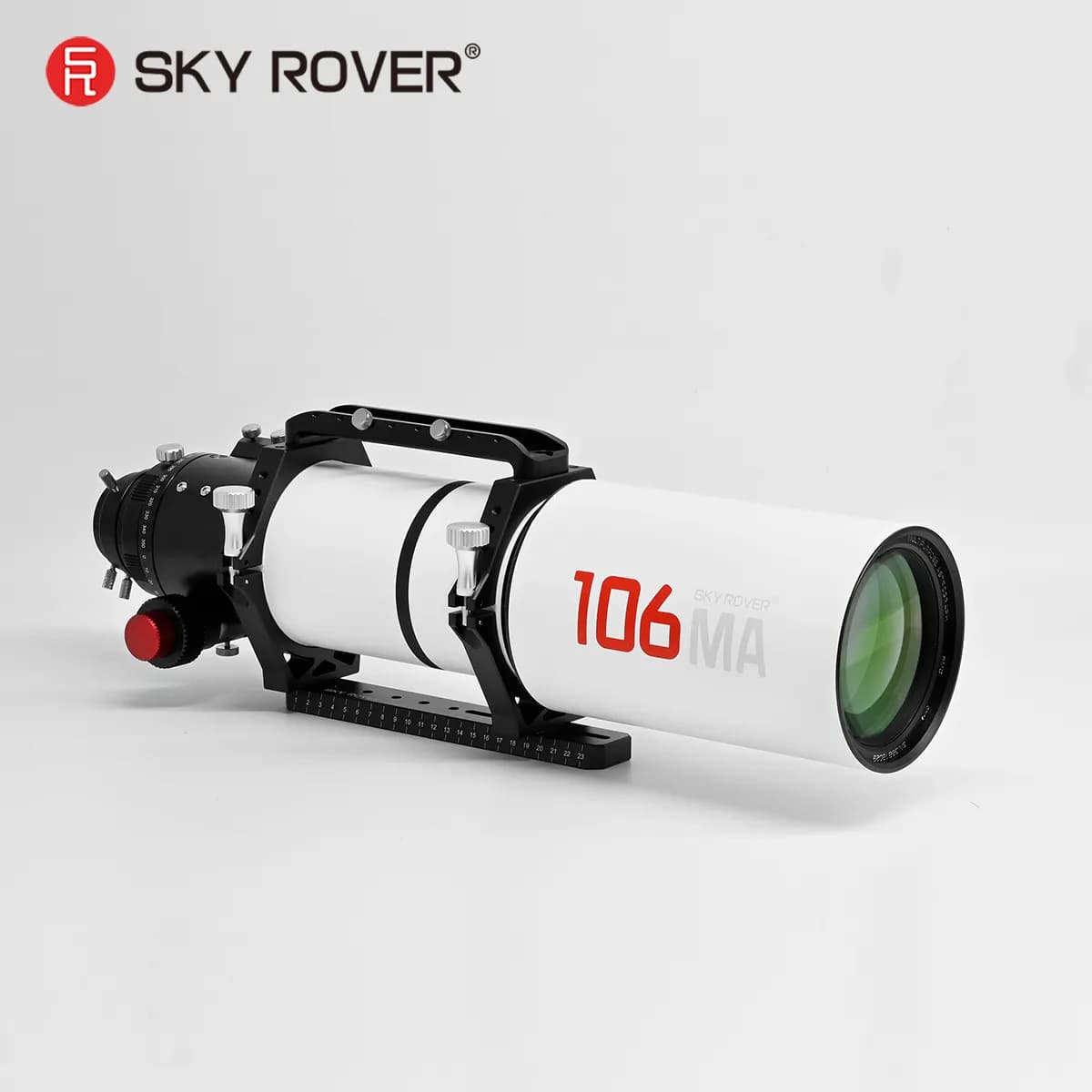

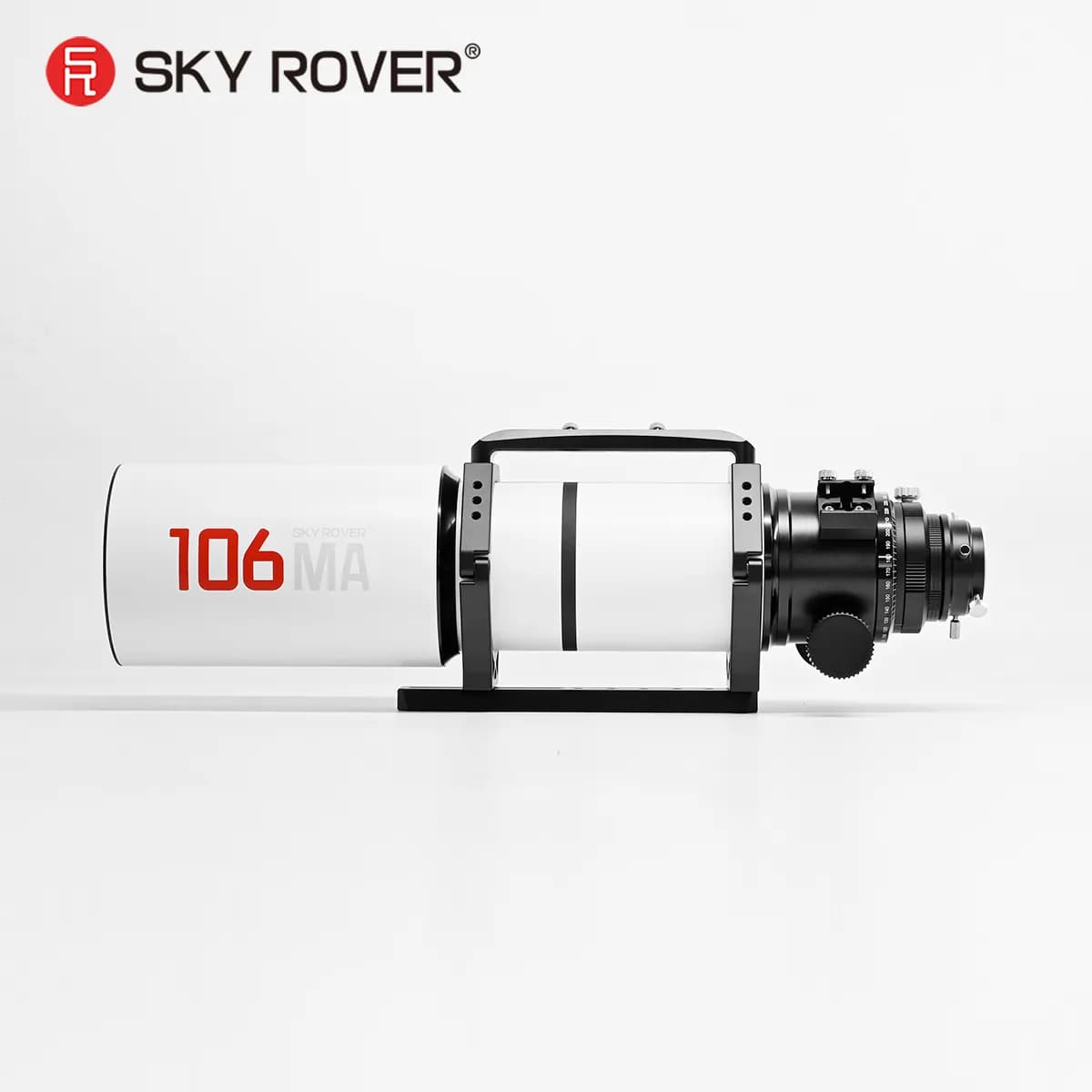

The Sky Rover 106MA brings a native flat field and a 44 mm image circle to a compact 106 mm refractor. It is designed to let enthusiasts use full-frame cameras at prime focus while still working with standard visual accessories for observing. The f/7 focal ratio aims to balance imaging performance with forgiving, easier focusing.
106 mm native flat-field astrograph
Full-frame prime-focus imaging
Dual ED optical design
3.2-inch dual-speed R&P focuser
Visual and imaging friendly design

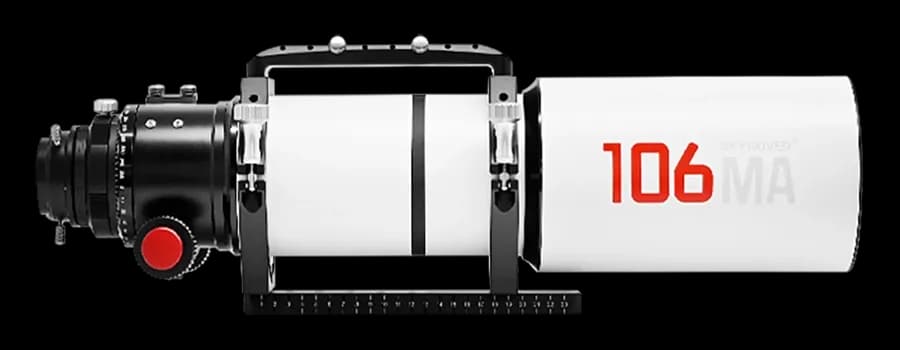

A unified optical layout combines a triplet objective with a crescent-shaped field flattener so the 106MA provides a native flat field. That design supports full-frame prime-focus imaging across a 44 mm image circle, reducing the need for separate flatteners or additional corrective optics for large sensors.

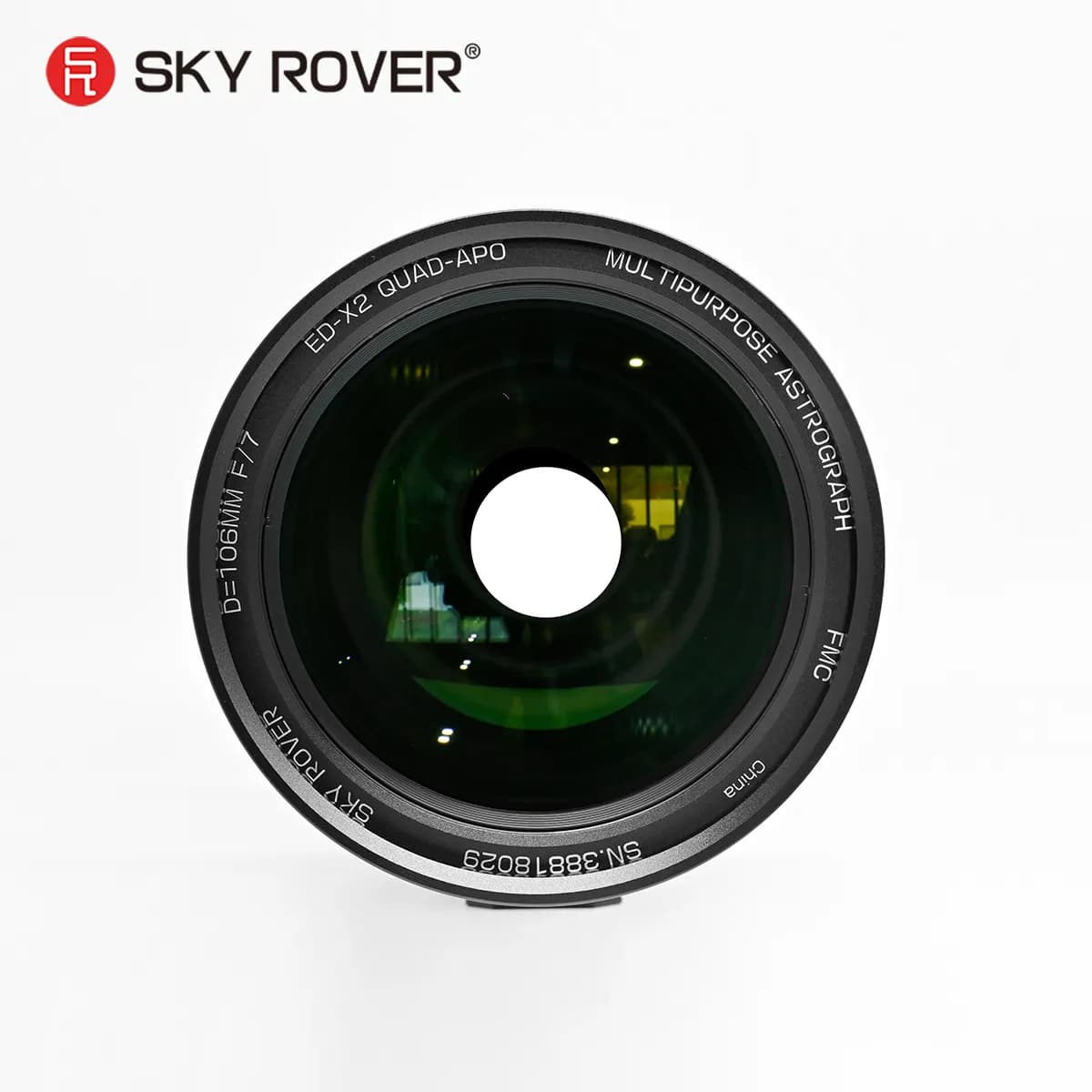

The front lens group uses two ED glass elements to tame chromatic aberration and enhance fine detail. This helps deliver cleaner star images and better colour control than a simple achromat, which matters for high-resolution imaging and for visual views where colour fringing is noticeable.
Unlike many dedicated astrographs, the 106MA accepts standard visual accessories such as diagonals, eyepieces, and with an extender, binoviewers. That flexibility means you can switch between astrophotography and visual observing without changing to a different instrument.
A 3.2-inch dual-speed rack-and-pinion focuser gives fine control for critical focus. The tube runs about 600 mm retracted and 820 mm extended, and the OTA weighs 5.2 kg with a gross weight of 6.3 kg including rings and dovetail. The rear offers M63, M54, M48 threads and a 2-inch adapter for camera and visual attachments.

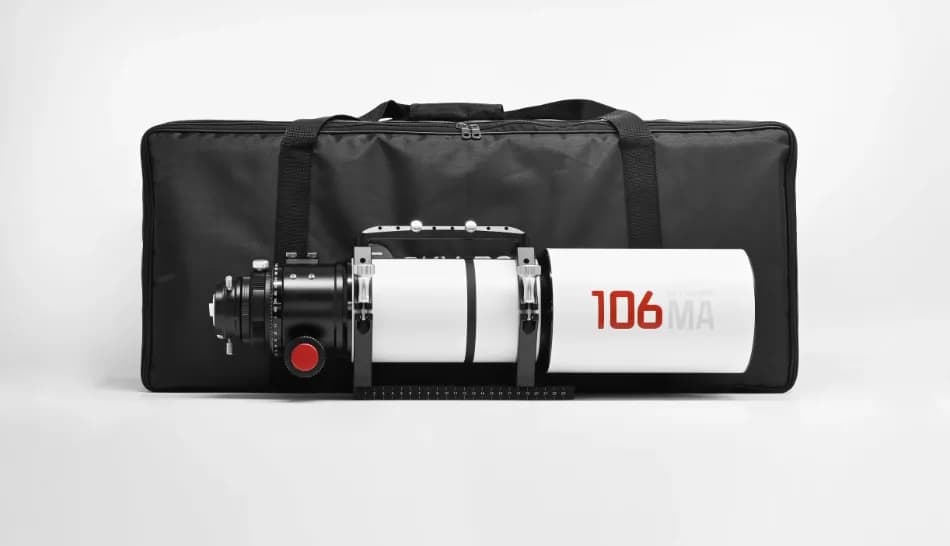

The package includes the Sky Rover 106MA OTA, tube rings, a Vixen-style dovetail plate, handle, finder base, 2-inch adapter, M54 adapter, M48 adapter, a focus extension tube, and a soft carry bag.
An optional 0.8x reducer is available for users who want a wider field or faster effective focal ratio.
The 106MA offers M63 x 1, M54 x 0.75, M48 x 0.75 thread options plus a 2-inch interface to accommodate a variety of cameras and visual adapters.
| Aperture | 106 mm |
| Focal Length | 742 mm |
| Focal Ratio | f/7 |
| Optical Design | Air-spaced quadruplet, native flat field, with two ED glass lenses |
| Image Circle | 44 mm, full frame |
| Tube Length | 600 mm retracted, 820 mm extended |
| Dew Shield Outer Diameter | 139 mm |
| OTA Weight | 5.2 kg |
| Gross Weight (with tube ring & dovetail) | 6.3 kg |
| Focuser | 3.2-inch dual-speed rack-and-pinion focuser |
| Rear Interfaces | M63 x 1 / M54 x 0.75 / M48 x 0.75 / 2-inch |
| Optional Reducer | 0.8x reducer available |
